Drone Command Vehicles
Air-ground coordination command vehicles for UAV operations in emergency and public safety missions. Ground control stations with multi-drone capability.
Why Choose Our UAS Command Platforms
Every unit engineered around your chassis, equipment list and target market.
CE marked where required; road-legal feasibility checked before production starts.
Body, interior and equipment integration done at our 50,000 m² Nanjing base.
Documented bill of materials and global shipping of wear parts.
Drone Command Vehicles — Model Range
Dongfeng Mengshi M20 Off-Road UAV Command Vehicle
4.5t 4x4 Drone Nest & Reconnaissance Platform

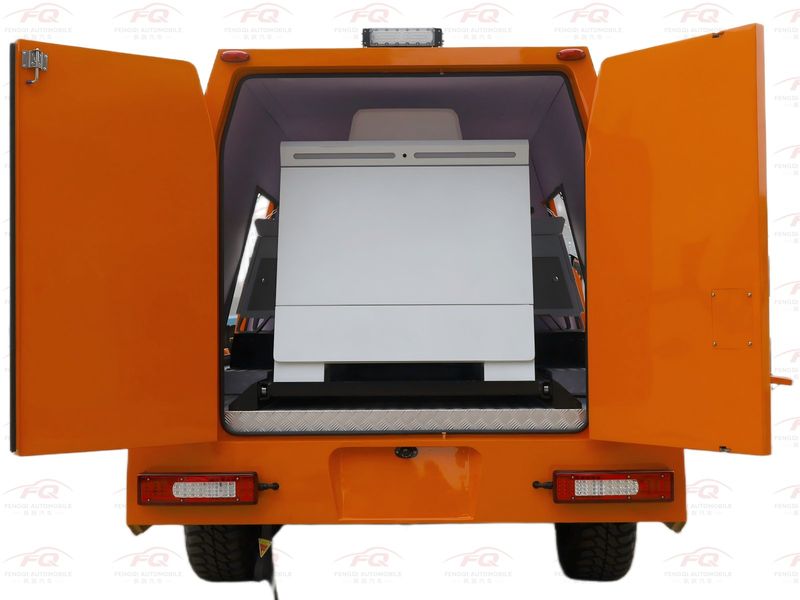

This command vehicle is built on the Dongfeng EQ2068FYY6J off-road type-II chassis, with a 5999 mm overall length and 4495 kg gross weight, serving as a lightweight emergency command platform combining high off-road capability with UAV operation capability. The vehicle integrates a UAV nest and command workstation in the compartment, enabling on-site takeoff, landing, and stowage of drones for reconnaissance and image transmission missions, complemented by rear floodlights and audio-video command system, suitable for forward command, situational reconnaissance, and on-site conferencing by fire, emergency, public security, and power departments in complex terrain and unsupported conditions. Body dimensions are 5999 x 2160/2260 x 2720 mm, wheelbase 3700 mm, curb weight 4300/4365 kg, cab seating for 3/2, top speed 140/130 km/h, approach/departure angles 33/19 degrees. Power comes from Dongfeng Cummins D4.5NS6B220 (162 kW), D4.5NS6B240 (176 kW), or D6.7NS6B320 (231 kW) China VI diesel engines with multiple options, ABS by Guangzhou Ruilikemi, and optional direct-power ETC. Declared dedicated equipment includes UAV nest and command workstation; rear floodlights are for parking operation only, and the compartment roof is sealed and non-openable. Typical applications include UAV reconnaissance command (using drone-returned imagery to assist decision-making and dispatch at disaster, accident, and security scenes), complex terrain forward command (off-road chassis suitable for unpaved road transitions in villages, mountains, and dams), night emergency response (rear floodlights ensuring parking illumination for continuous workstation operation), and power or municipal patrol maintenance (temporary command and UAV inspection at field operation sites).
| Vehicle Model | Dongfeng Mengshi M20 UAV Command Vehicle |
| Emission Standard (China V / China VI / Euro III–VI) | China VI |
| Fuel Type (Diesel / Gasoline / Electric / Hybrid) | Diesel |
| Drive Configuration (4×2 / 6×4 / 8×4 / 4×4) | 4x2 |
| Overall Dimensions (L × W × H) mm | 6205x2220x2425mm |
| Engine Displacement (L) | 7.OL |
| Seating Capacity | 2+3 |

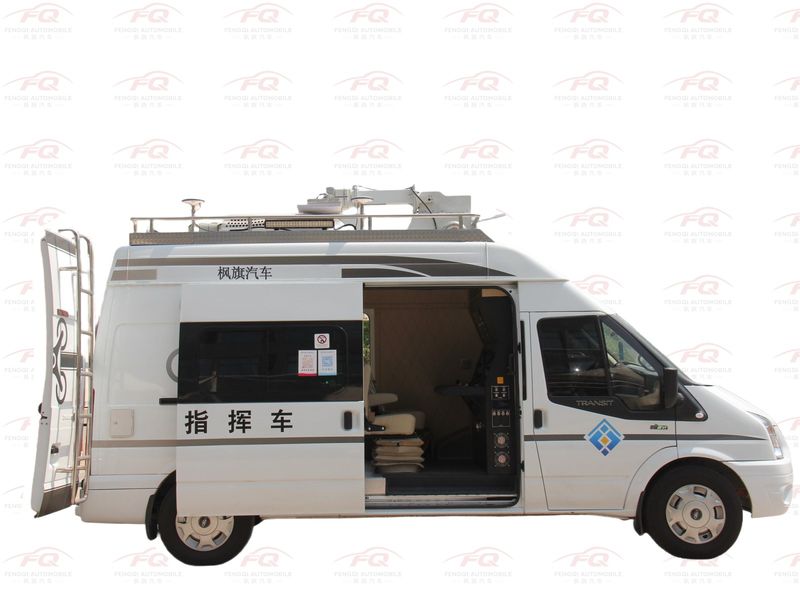

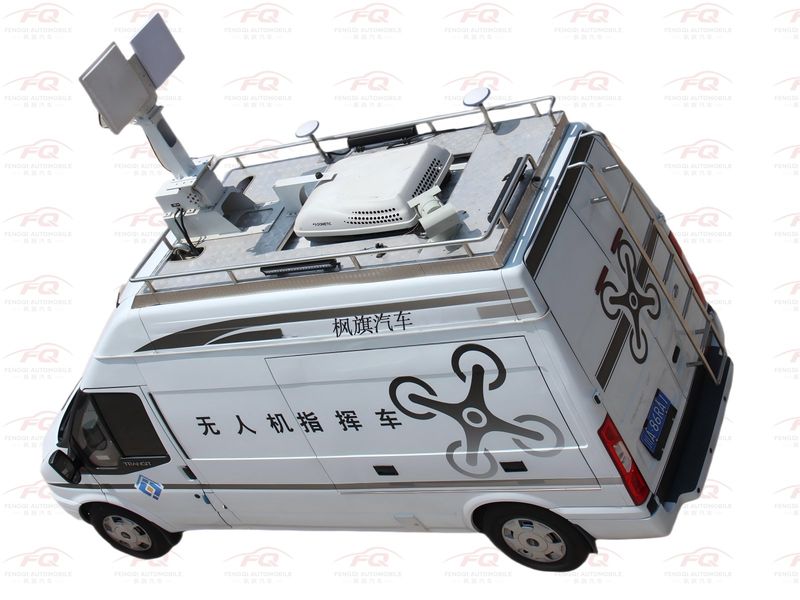

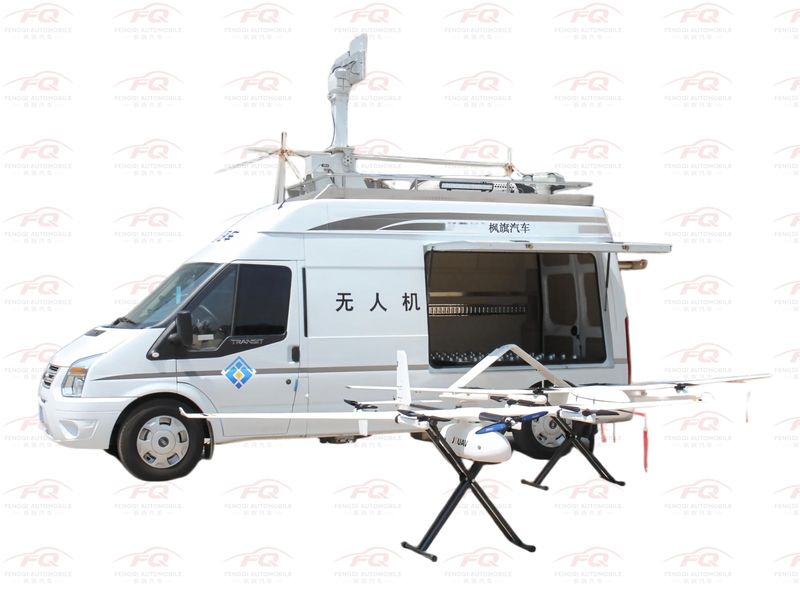

JMC Ford Transit V348 UAV Command Vehicle
Lightweight Blue-Plate Drone Nest & Mobile Command Platform

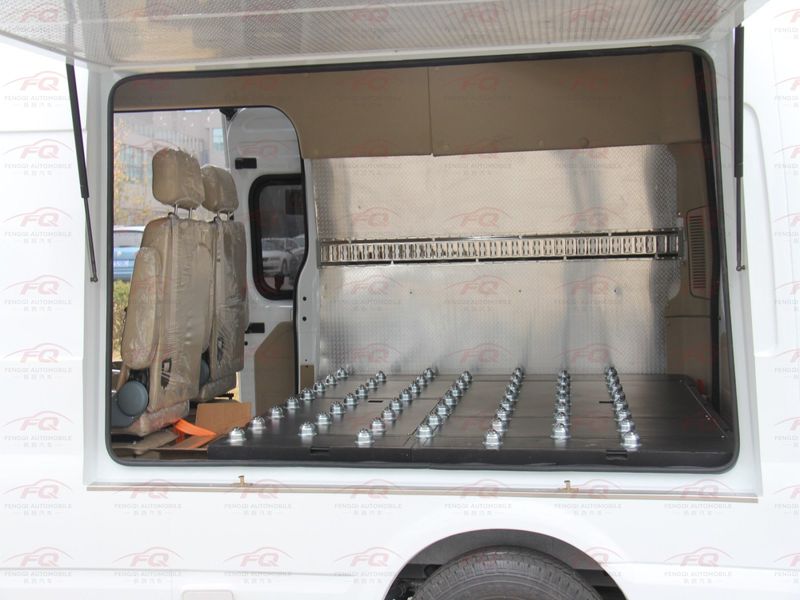

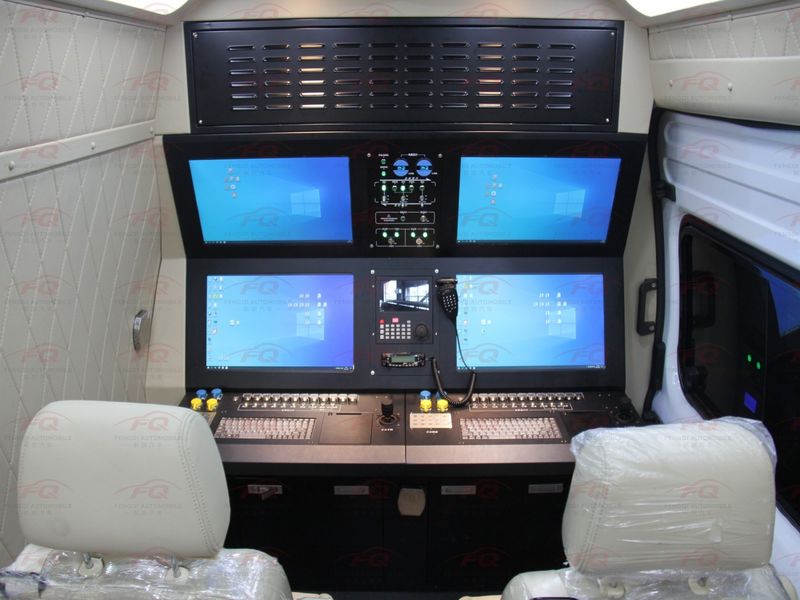

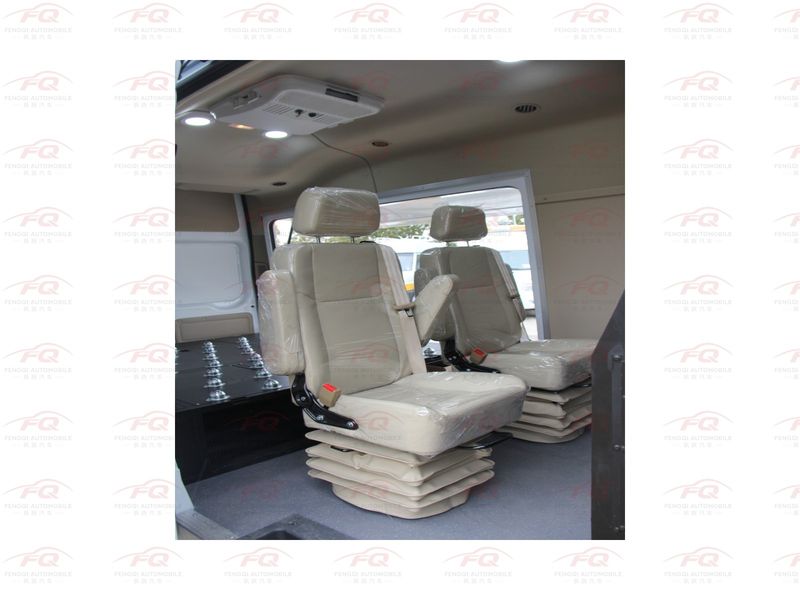

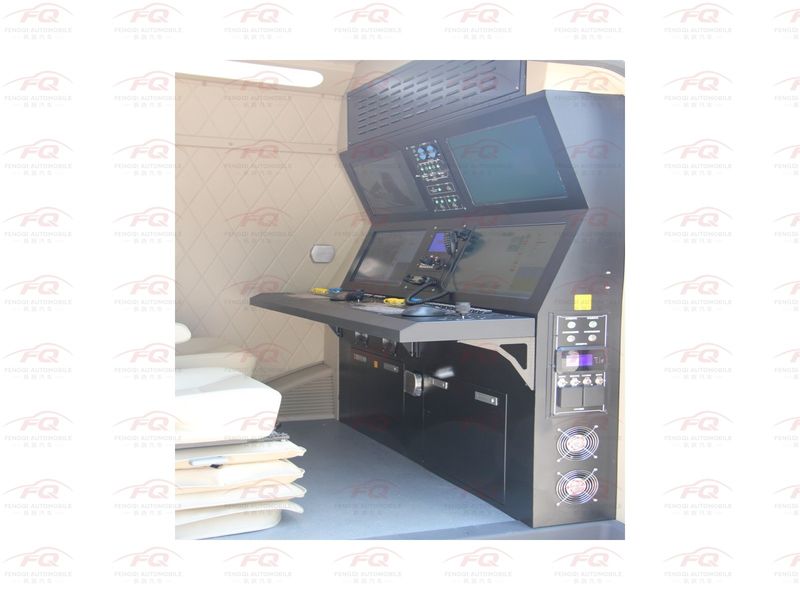

This JMC Ford Transit V348 (New Generation Transit) UAV command vehicle is built on the V348 long-wheelbase type-II or bus chassis, serving as an agile lightweight UAV emergency command platform for urban and suburban scenarios. Leveraging the spacious compartment, it integrates a UAV nest or takeoff and landing platform, command workstation, display and audio-video conferencing system, complemented by exterior floodlighting and communication links to enable on-site reconnaissance, image transmission, and forward command. Blue-plate C-license drivable, it suits the drone-based command needs of grassroots teams in fire, emergency, public security, and power sectors. The base chassis is the JMC Ford Transit V348 (New Generation Transit) long- or medium-wheelbase type-II or bus chassis, with 3750 mm wheelbase (long axle), body dimensions approximately 5780-6503 x 1974-2000 x 2590-3200 mm (varies by options), typical GVW 3700-4250 kg (blue plate), top speed approximately 145 km/h, front-engine front-wheel drive, China VI emission standard. Power comes from a Ford Duratorq 2.2T diesel (approximately 100-103 kW), with optional new-platform 2.0T EcoBoost gasoline, 215/75R16LT tires, and Bosch ABS plus EBD. The integration package includes UAV nest or takeoff and landing platform, command workstation, image transmission communications (4G/5G private network, optional satellite or ad-hoc network), and exterior floodlighting. Typical applications include UAV reconnaissance command (using drone-returned imagery to assist decision-making and dispatch at disaster, accident, and security scenes), urban emergency forward command (agile passage suitable for rapid urban and suburban transitions), power or pipeline patrol maintenance (UAV inspection plus onboard conferencing to improve field operation efficiency), and large-event security (on-site dispatch, broadcasting, and situational awareness for public security and fire departments).

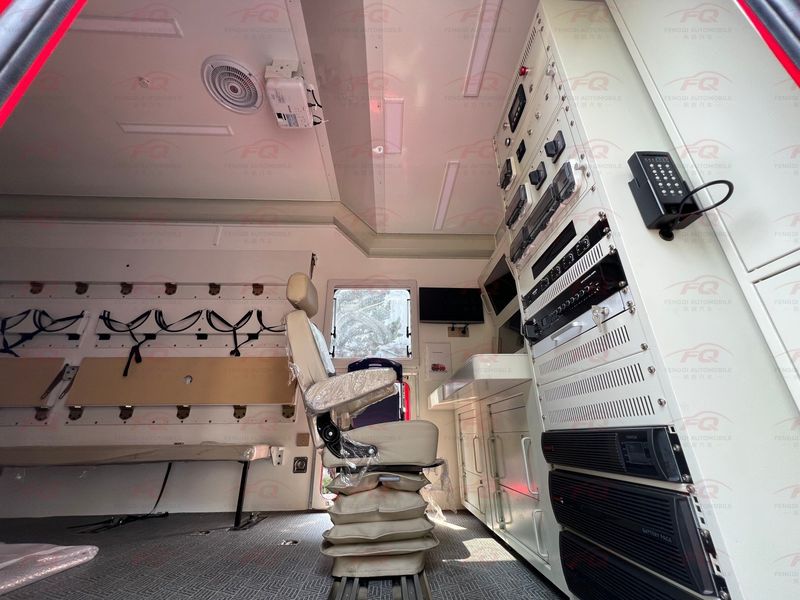

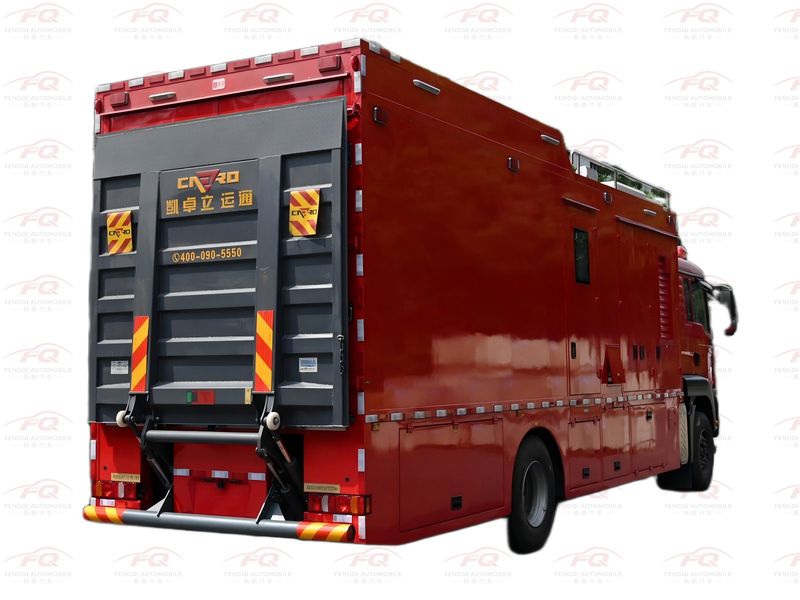

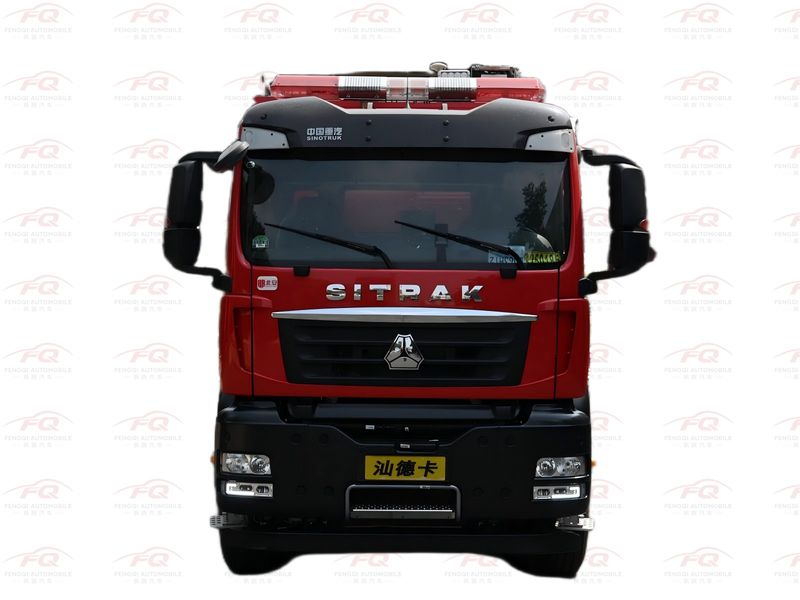

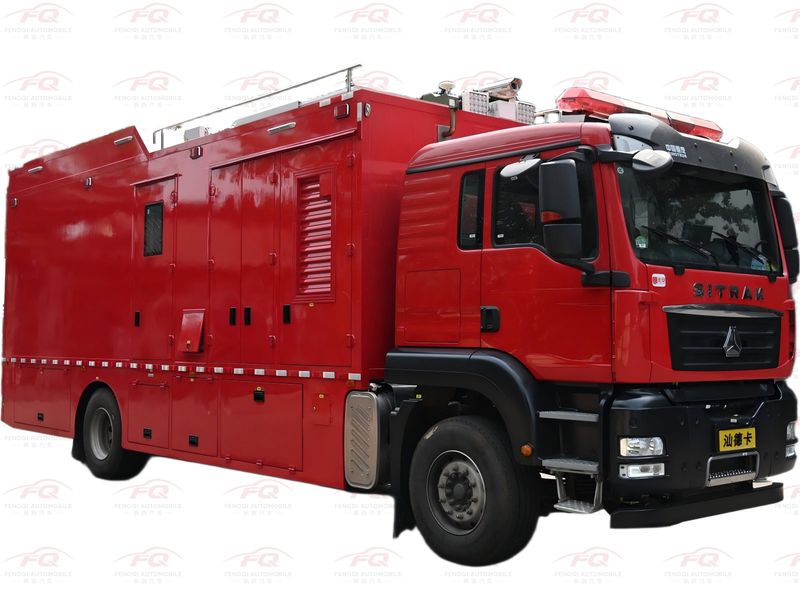

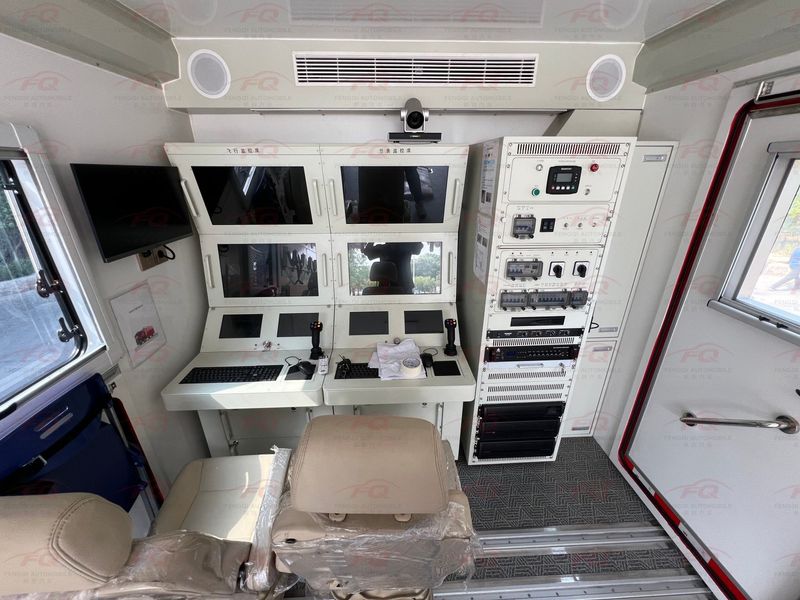

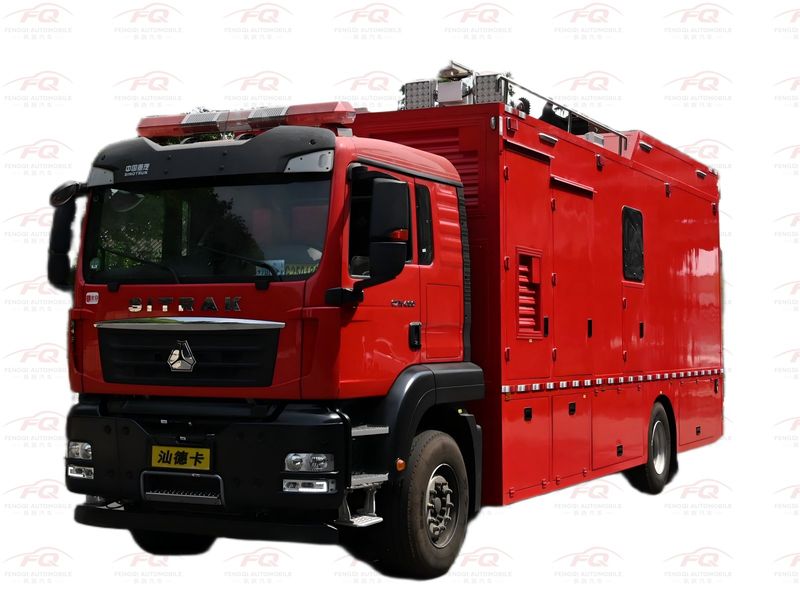

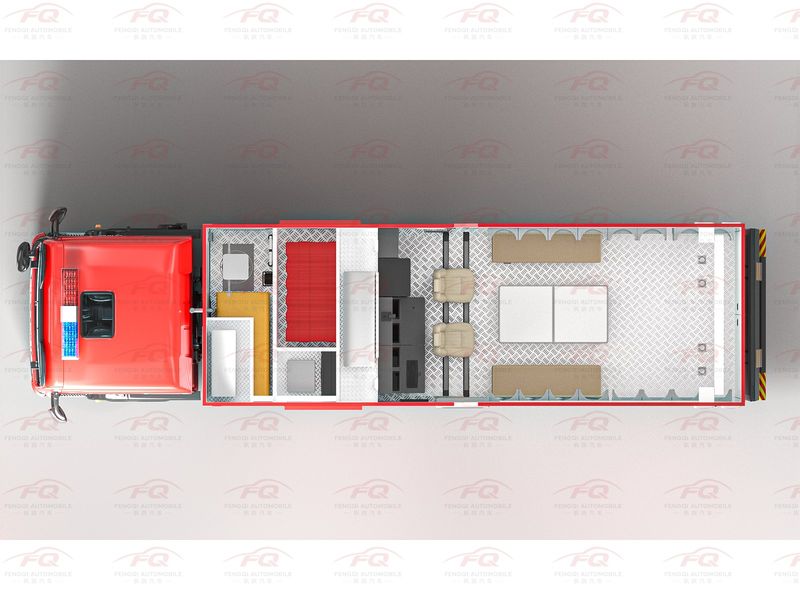

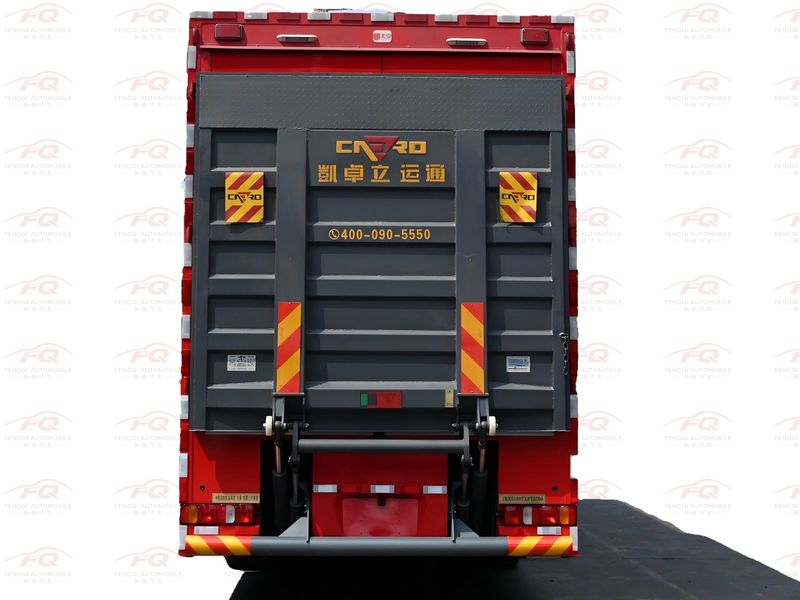

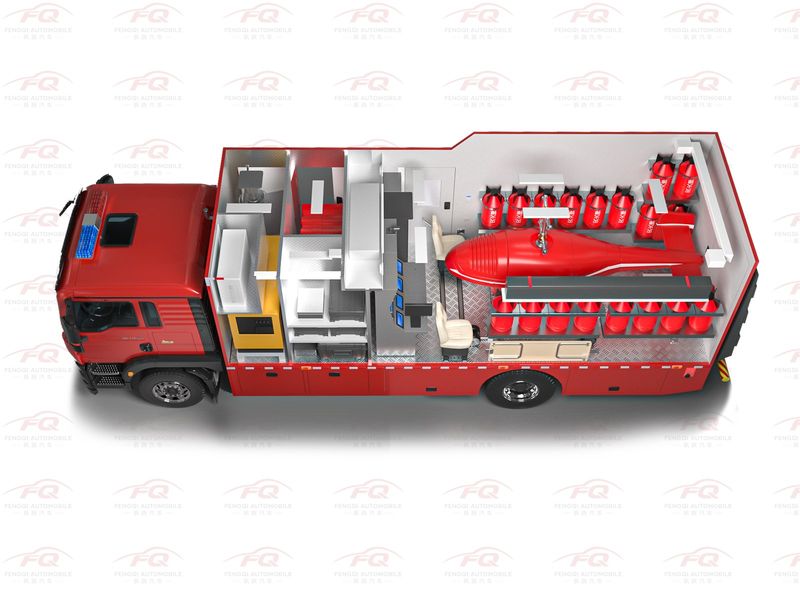

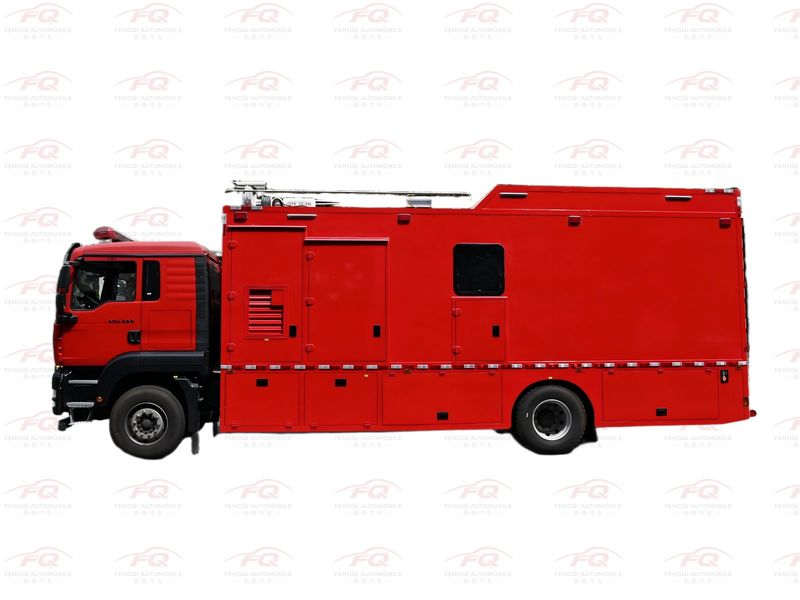

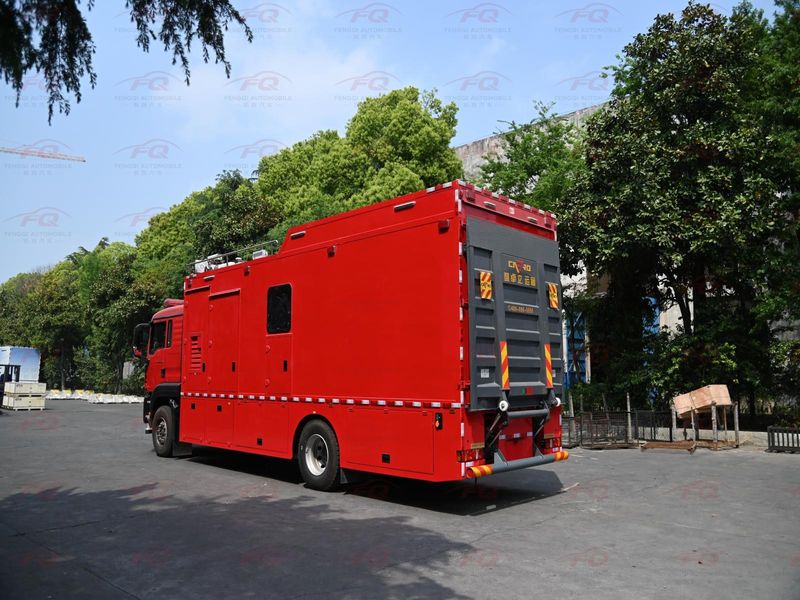

SITRAK 18-Ton Drone Command Vehicle
18-ton drone command vehicle on the SITRAK chassis with multi-drone ground-control stations for large-scale UAS operations.
Common Questions on Drone Command Builds
What chassis do you use?+
We build on the chassis you specify — IVECO, Mercedes, Ford, Maxus, Dongfeng and more.
Are vehicles certified for export?+
Yes, CE marked where required, and we verify road-legal compliance for your destination market before production.
What is the typical lead time?+
Standard builds deliver in 1–3 months. Deep-customized projects run 4–6 months, including design, conversion and testing at our Nanjing base.
Request A Quotation
Tell us your chassis preference, target market and equipment list. We respond within 2 business days.
