Mobile Medical Imaging Vehicles
Mobile medical imaging vehicles with integrated diagnostic equipment. Configurable for dental, X-ray, and ultrasound deployments in remote areas.
Why Choose Our Mobile Clinic Builds
Every unit engineered around your chassis, equipment list and target market.
CE marked where required; road-legal feasibility checked before production starts.
Body, interior and equipment integration done at our 50,000 m² Nanjing base.
Documented bill of materials and global shipping of wear parts.
Mobile Imaging Vehicles — Model Range

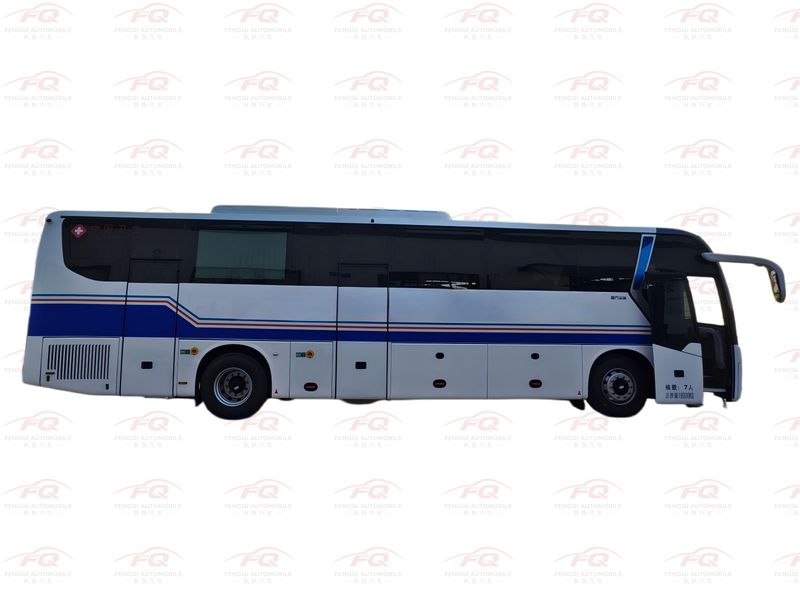

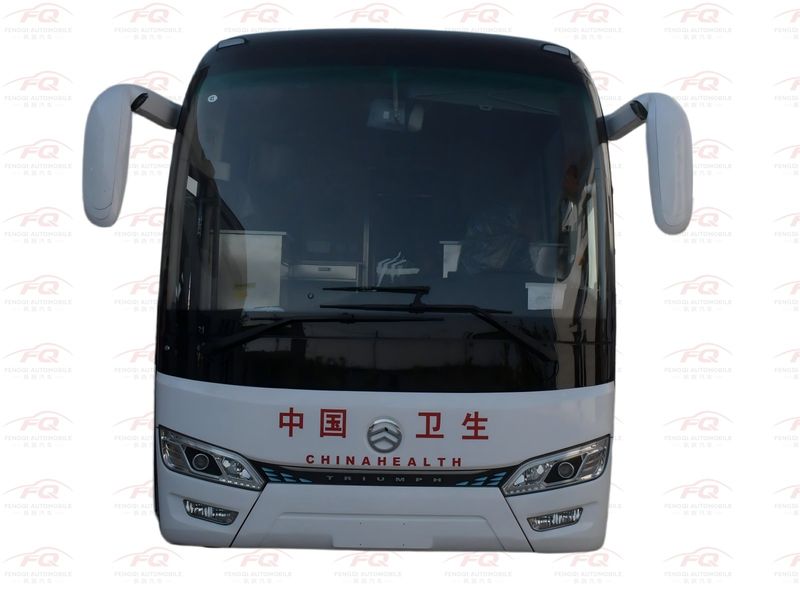

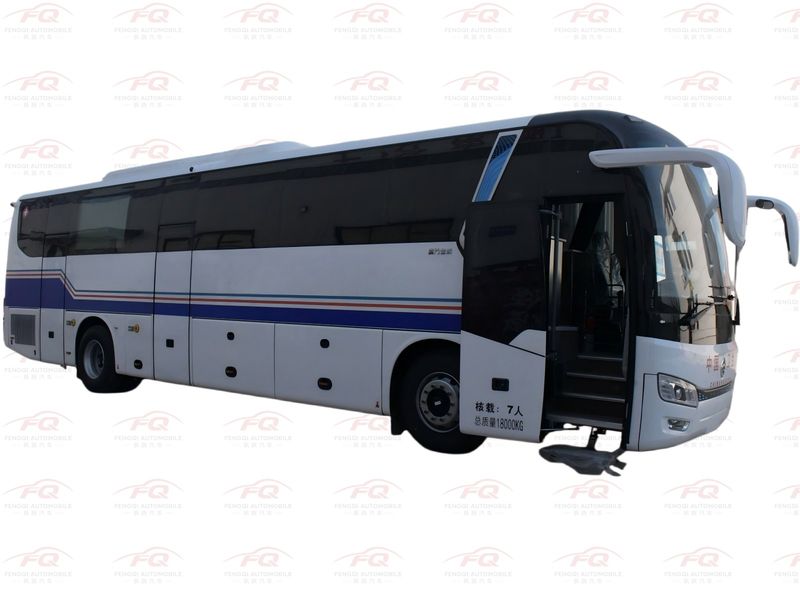

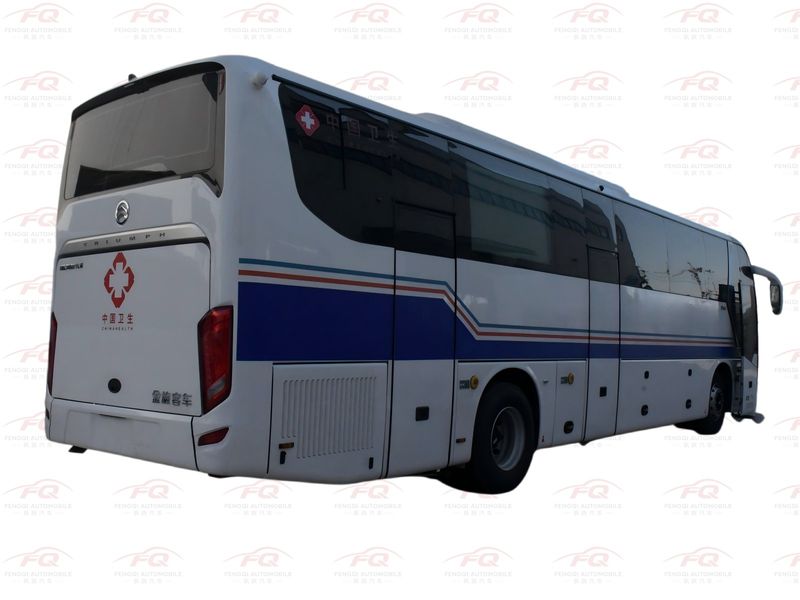

Golden Dragon XML6827 Medical Screening Vehicle
Mobile Health Examination & Blood Collection Truck

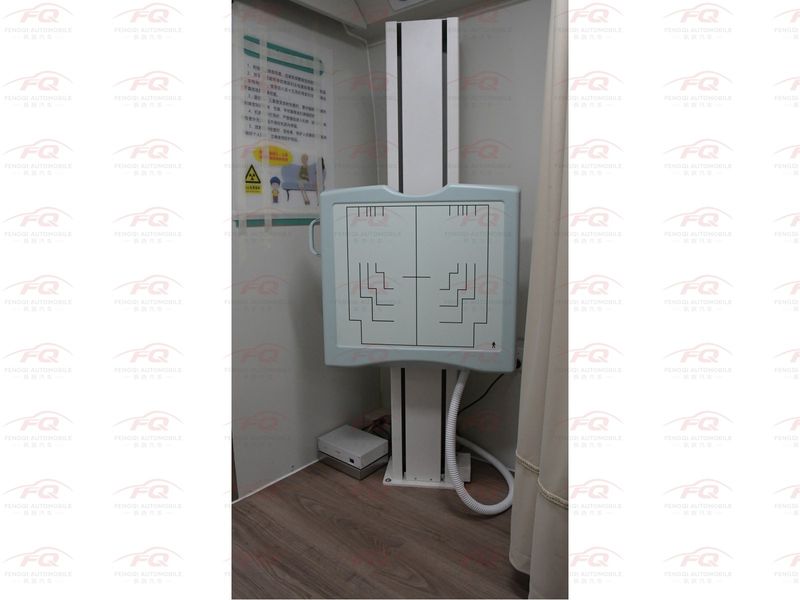

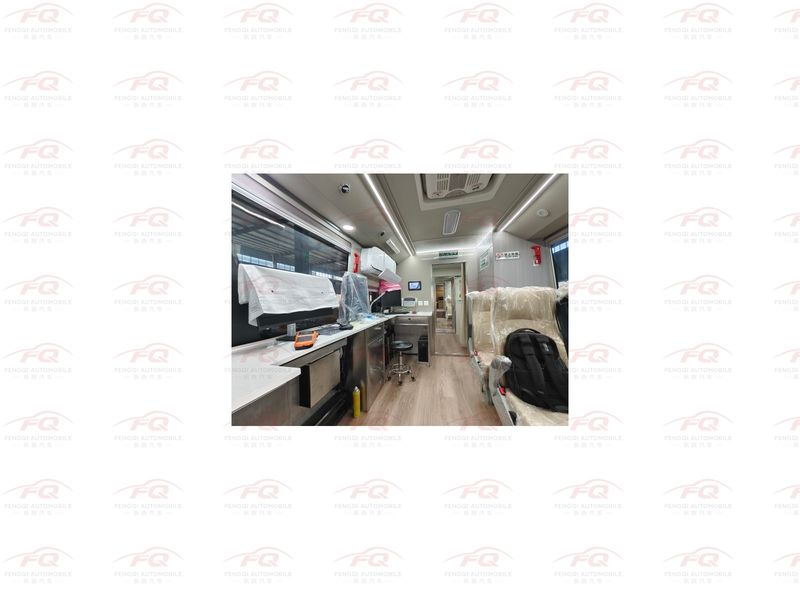

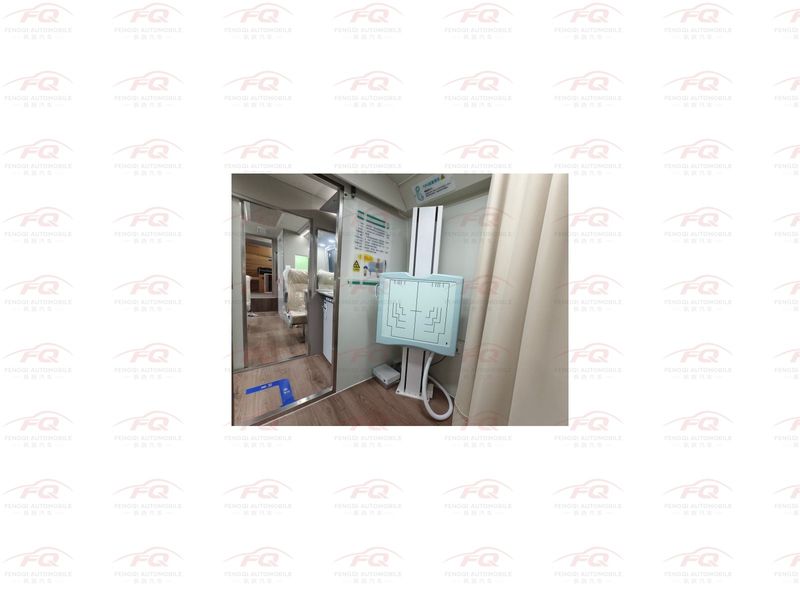

This 8.19-meter medium-duty medical screening vehicle features a unitized body with full-vehicle cathodic electrophoretic coating, built on Golden Dragon's in-house XML6827J16Z chassis with a gross weight of 11.6 tons. It serves mobile public-health screening, blood collection, and medical diagnosis, with optional lead-shielded room, X-ray/DR/CT, examination bed, dental treatment unit, audiometric booth, laboratory equipment, blood storage refrigerator, and lab facilities, with interior zones flexibly configured for screening, imaging, and specialty care. Power comes from China VI diesel engines, with options including Yuchai YCK05230-60 (169 kW) or Weichai WP4.6NQ220E61 (162 kW). Overall dimensions are 8190 × 2500 × 3240/3300/3460 mm, wheelbase 3960 mm, seating for 2–9, top speed 100 km/h, and 9R22.5 tires. Typical applications include routine public-health screening and disease screening in communities, townships, and rural areas (one-stop DR, color ultrasound, biochemistry, blood and urine testing), on-site group physicals for enterprises, schools, and military recruitment, voluntary blood donation and blood-collection duties (with blood-donation couch and blood storage refrigerator), mobile medical diagnosis and emergency support in disaster, remote, and inaccessible areas, and specialty outreach in dental and audiology (dental treatment unit, audiometric booth).
| Vehicle Model | Xiamen King LongXML6122J16T |
| Emission Standard (China V / China VI / Euro III–VI) | China VI |
| Fuel Type (Diesel / Gasoline / Electric / Hybrid) | Diesel |
| Drive Configuration (4×2 / 6×4 / 8×4 / 4×4) | 4x2 |
| Overall Dimensions (L × W × H) mm | 12000x2550x3600,3690,3650,3790 |
| Engine Displacement (L) | 7.8L |
| Seating Capacity | 2 pax-9 pax |

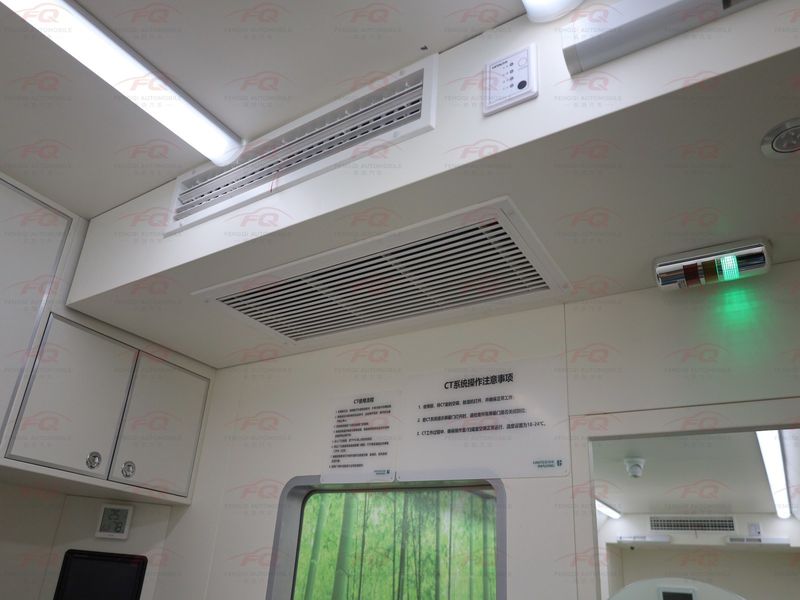

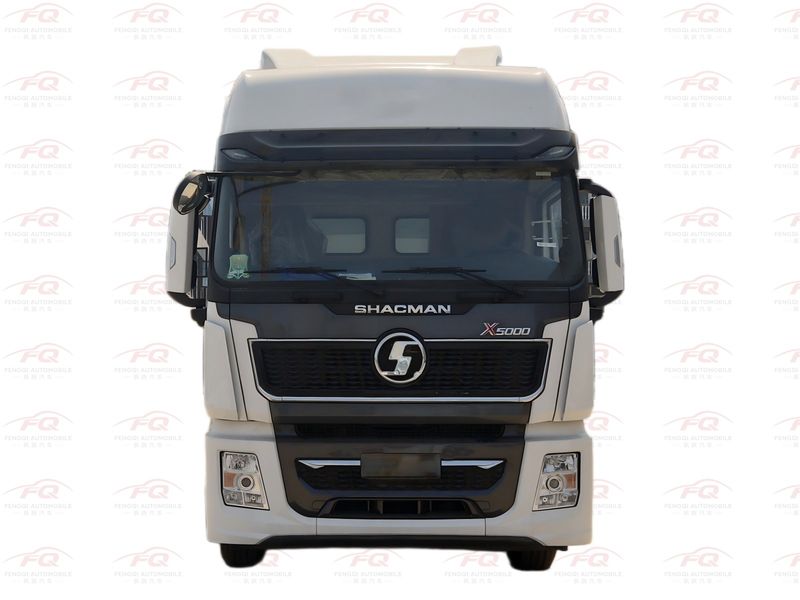

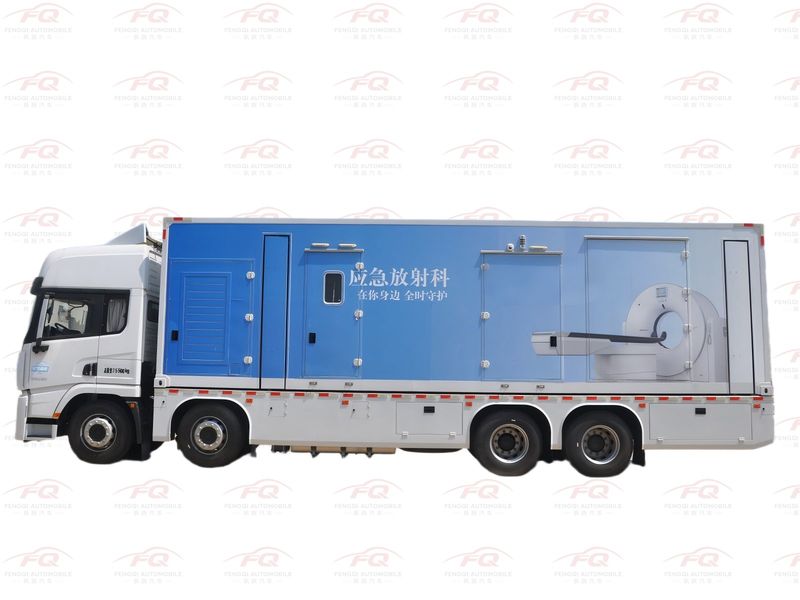

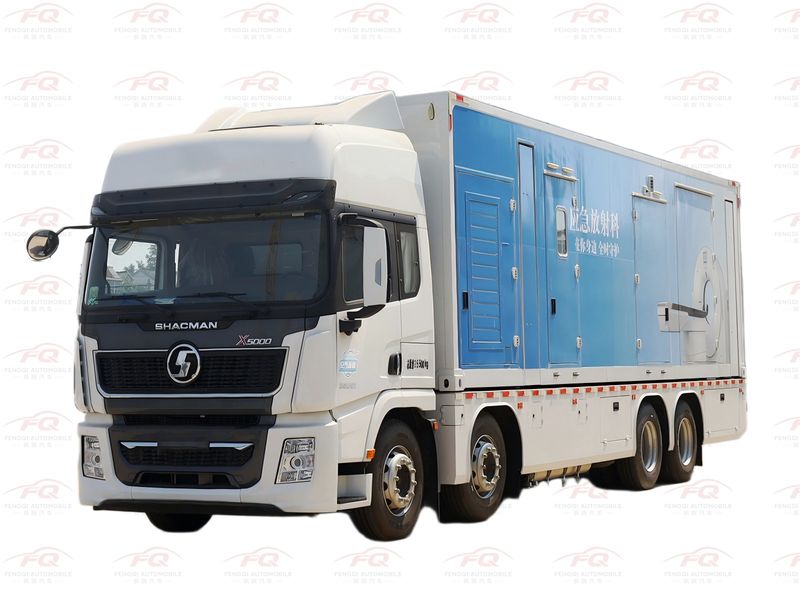

SHACMAN 8×4 Mobile Medical Laboratory Truck
Expandable CT & Nucleic Acid Testing Vehicle

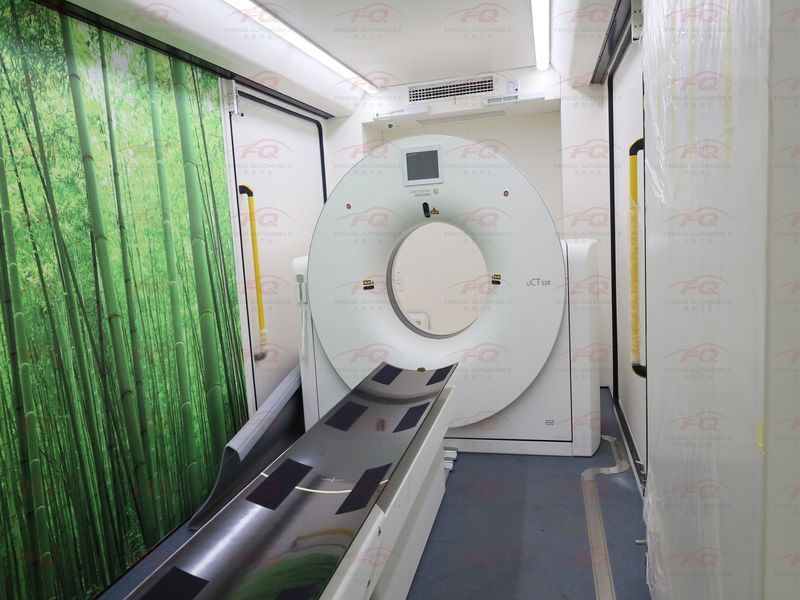

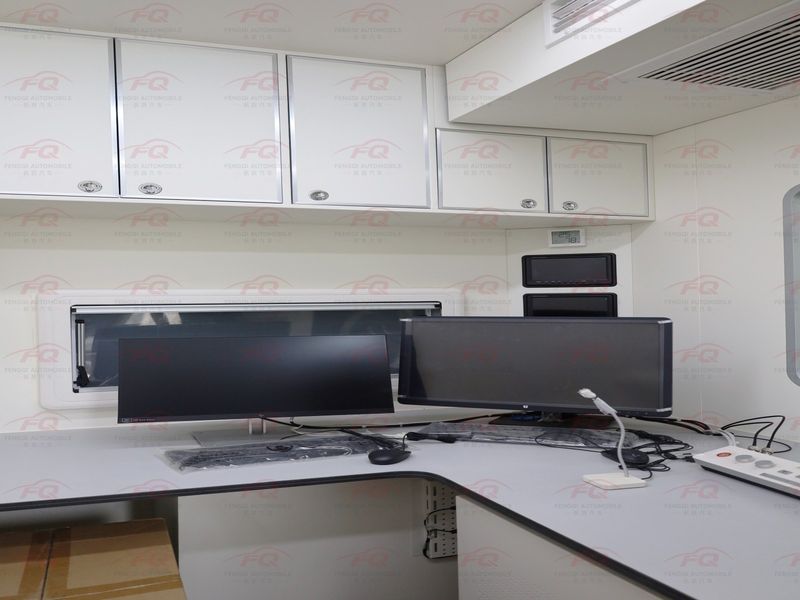

This medical vehicle is built on the SHACMAN SX1329XC6F1 heavy-duty 8×4 four-axle type-II chassis, with a 12-meter overall length and 25–26 ton gross weight. The compartment integrates medical laboratory equipment (biosafety cabinet, nucleic acid testing devices, medical instrument cabinets, ultra-clean workbench, medical refrigerator) with optional CT imaging equipment and operation console, serving medical examination, diagnosis, and epidemic prevention — an expandable mobile shelter hospital and mobile testing laboratory. Overall dimensions are 12000 × 2550 × 3880/3950/3995 mm, wheelbase 1800+4575+1400 mm, four axles, front/rear overhangs 1525/2700 mm. Curb weight is 25305/25370/25805/25870 kg (varies by medical equipment configuration), GVW 25500/26000 kg, cab seating 2/3, top speed 89 km/h (with speed limiter). It rides on twelve 12R22.5 18PR or 295/80R22.5 18PR tires with non-independent air suspension, approach/departure angles 17°/11°, ABS by Xi'an Zhengchang ZQFB-V, and optional ETC. Power comes from Weichai China VI diesel engines ranging 257–360 kW, with options including WP12.490E62 (360 kW / 489 hp), WP11S460E68 (338 kW), WP10.5H430E62 (316 kW), or WP8.350E61·E62 (257 kW / 349 hp). The dedicated module includes medical laboratory equipment (biosafety cabinet, nucleic acid testing, instrument cabinets, ultra-clean workbench, medical refrigerator), optional CT imaging with console, and single- or dual-side expandable cabin (parking use only); side protection is Q235A skirt at 430 mm ground clearance, rear protection is Q235A 50×120 section at 450 mm.
| Vehicle Model | CT Vehicle |
| Emission Standard (China V / China VI / Euro III–VI) | China VI EuroⅥ |
| Fuel Type (Diesel / Gasoline / Electric / Hybrid) | Diesel |
| Drive Configuration (4×2 / 6×4 / 8×4 / 4×4) | 4x4 |
| Overall Dimensions (L × W × H) mm | 12000x2550x3880,3950,3995(mm) |
| Engine Displacement (L) | 10.0L |
| Seating Capacity | 3 |
Common Questions on Mobile Imaging Conversions
What chassis do you use?+
We build on the chassis you specify — IVECO, Mercedes, Ford, Maxus, Dongfeng and more.
Are vehicles certified for export?+
Yes, CE marked where required, and we verify road-legal compliance for your destination market before production.
What is the typical lead time?+
Standard builds deliver in 1–3 months. Deep-customized projects run 4–6 months, including design, conversion and testing at our Nanjing base.
Request A Quotation
Tell us your chassis preference, target market and equipment list. We respond within 2 business days.
