Generator & Power Stations

Silent Power,
Built For The Field

Fengqi supplies VISION POWER silent power stations for telecom, mining, medical and emergency operations across Africa, Central Asia and beyond. From fully liquid-cooled units to shelter-integrated systems, we deliver reliable on-site power where grid access is limited or noise is critical.

WhatsApp Quote Email Us

CSS ultra-silent generator set - VISION POWER

Product Range

Seven Power Series

Standard & custom power solutions

Silent Power Stations

Fully Liquid-Cooled (CSS/UCSS)
Silent Station (CSA)
Integrated Silent Station (3-3000 kW)

Africa / Central Asia main line

Ultra-silent advantage

Fully liquid-cooled: 61 dB @ 3 m, dual-layer isolation
CSA silent station: IP45 sealed, cost-efficient
Integrated station: 3-3000 kW, plateau & -41 deg C validated

Vehicle-mounted & Mobile

Power Supply Vehicle
Trailer-mounted Station
Comms / Emergency Vehicle

On-road & towable

Mobility advantage

Road-ready enclosures & trailer chassis
Fast plug-and-play deployment
Optional remote monitoring & ATS auto-switch

Marine & Vessel Stations

Marine Ultra-silent (ZY-CSS)
Marine Diesel Genset (Volvo/Shangchai/Yuchai/Hanma)

Ship & vessel power

Marine-grade design

Corrosion-resistant marine-grade hardware
Shock & vibration protection for hull install
ZY-CSS ultra-silent core for vessel cabins

PTO Power System

Vehicle-mounted PTO Generation

Driven off chassis engine

No extra fuel tank

Uses chassis engine power, no separate fuel tank
Compact install with minimal weight penalty
Ideal for ambulance / command / patrol vehicles

Hybrid & New Energy

Hybrid Power Unit
Wind-Solar-Diesel-Storage
Energy Storage
Hydrogen Power (R&D)

Custom / project-based

Flexible energy mix

Wind-solar-diesel-storage hybrid options
Energy storage for peak shaving & silent mode
Hydrogen power roadmap available

Data Center & Industrial

Data Center Station (1000 kW+)
High-power Station

Custom / project-based

Reliable at scale

High-power parallel operation up to 1000 kW+
ATS / AMF auto-switching for critical loads
Low-noise enclosures for urban data centers

Shelter-integrated Power Station

Detachable Generator Supply Station (Fengqi new category)

Fengqi integrated solution

Fengqi integrated solution

Detachable shelter shell, hydraulic lift
Auto-levelling & multi-box interchange
Coordinates with office / medical / refrigeration shelters

Key Models

Main Promotions

Focus: Africa / Central Asia

Flagship

Fully Liquid-Cooled Station (CSS / UCSS)

Noise	61 dB @ 3 m
Enclosure	Fully sealed FRP (fiberglass)
Cooling	Full liquid-cooled single circuit (engine + alternator + muffler + exhaust)
Vibration	Dual-layer isolation, 90%+ effect
Control	Remote control panel - start/stop & live monitoring
Environment	-40 ~ 55 deg C, up to 5000 m altitude
Localization	100% China-sourced supply chain

Applications: Telecom base stations, hospitals, data centers, urban commercial zones - noise-sensitive sites.

Best Value

Silent Station (CSA)

Noise	64 dB @ 3 m
Enclosure	Semi-enclosed acoustic hood
Cooling	Split liquid-cooled radiator
Protection	Sealed waterproof structure, IP45
Vibration	Dual-layer isolation, 85%+ effect
Control	Local + remote start/stop
Environment	-40 ~ 55 deg C, up to 5000 m altitude

Applications: Construction sites, mining, agriculture - budget-sensitive outdoor use.

Versatile

Integrated Silent Station

Power range	3 - 3000 kW
Form	Compact, light-weight, low-noise
Use	Civil (RV, broadcast, emergency comms) & military (command, radar, EW, UAV power)
Validation	Passed 5000 m plateau & -41 deg C low-temp tests

Applications: Single-box power for vehicles and field deployments.

Product Appearance

CSS Ultra-Silent Unit

Three views of the same model

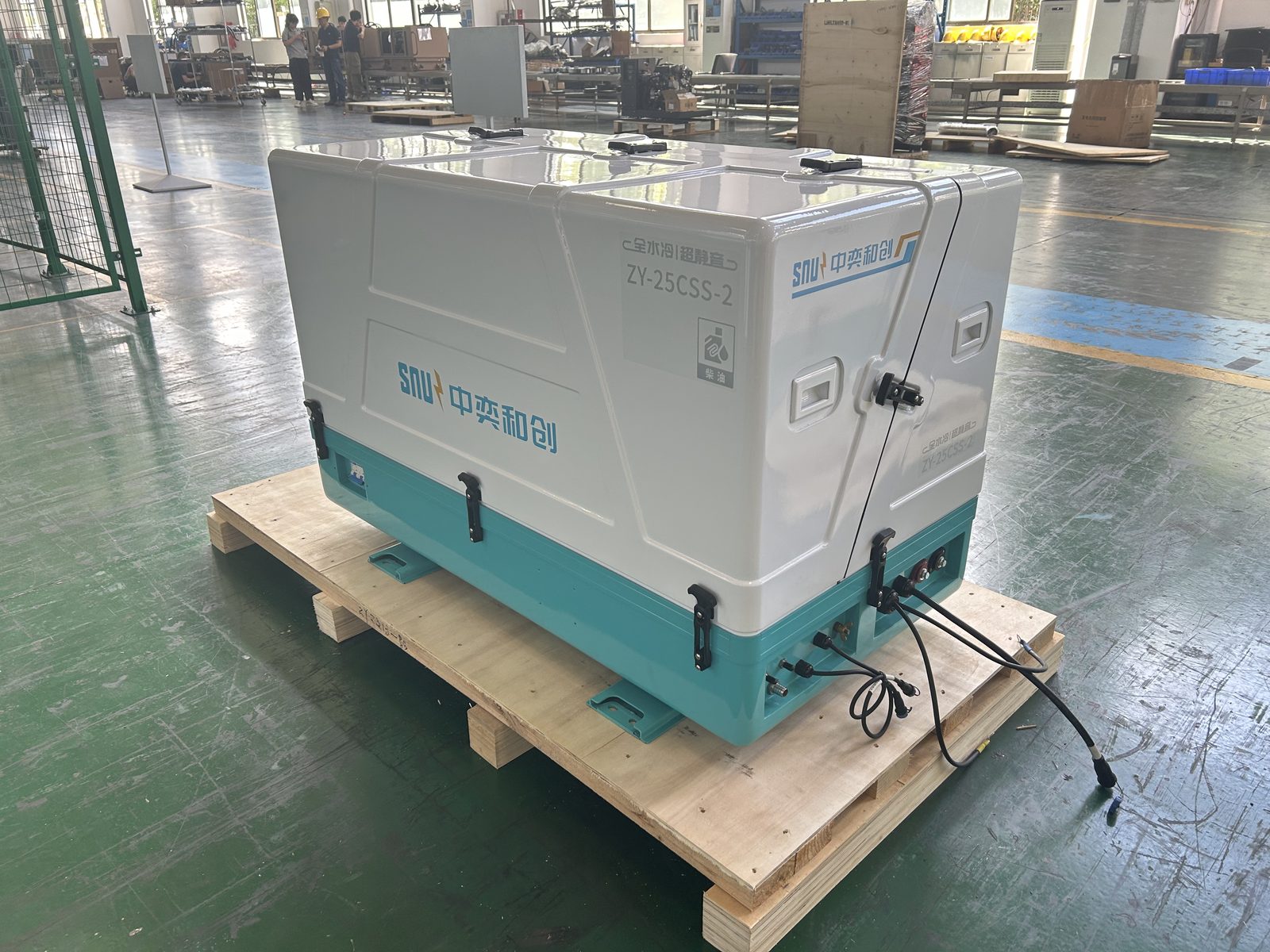

CSS ultra-silent generator - front view — Front

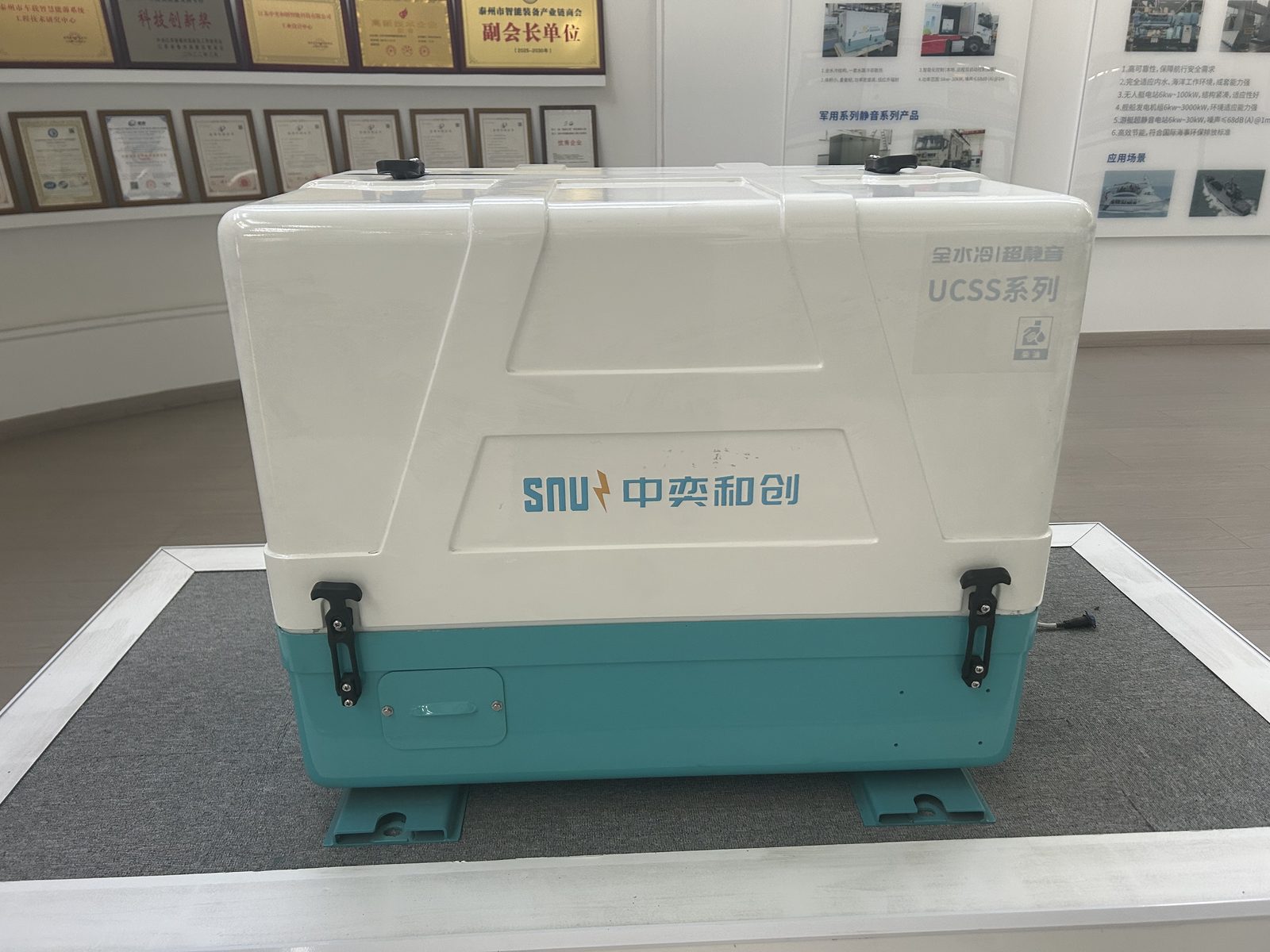

CSS ultra-silent generator - side view — Side

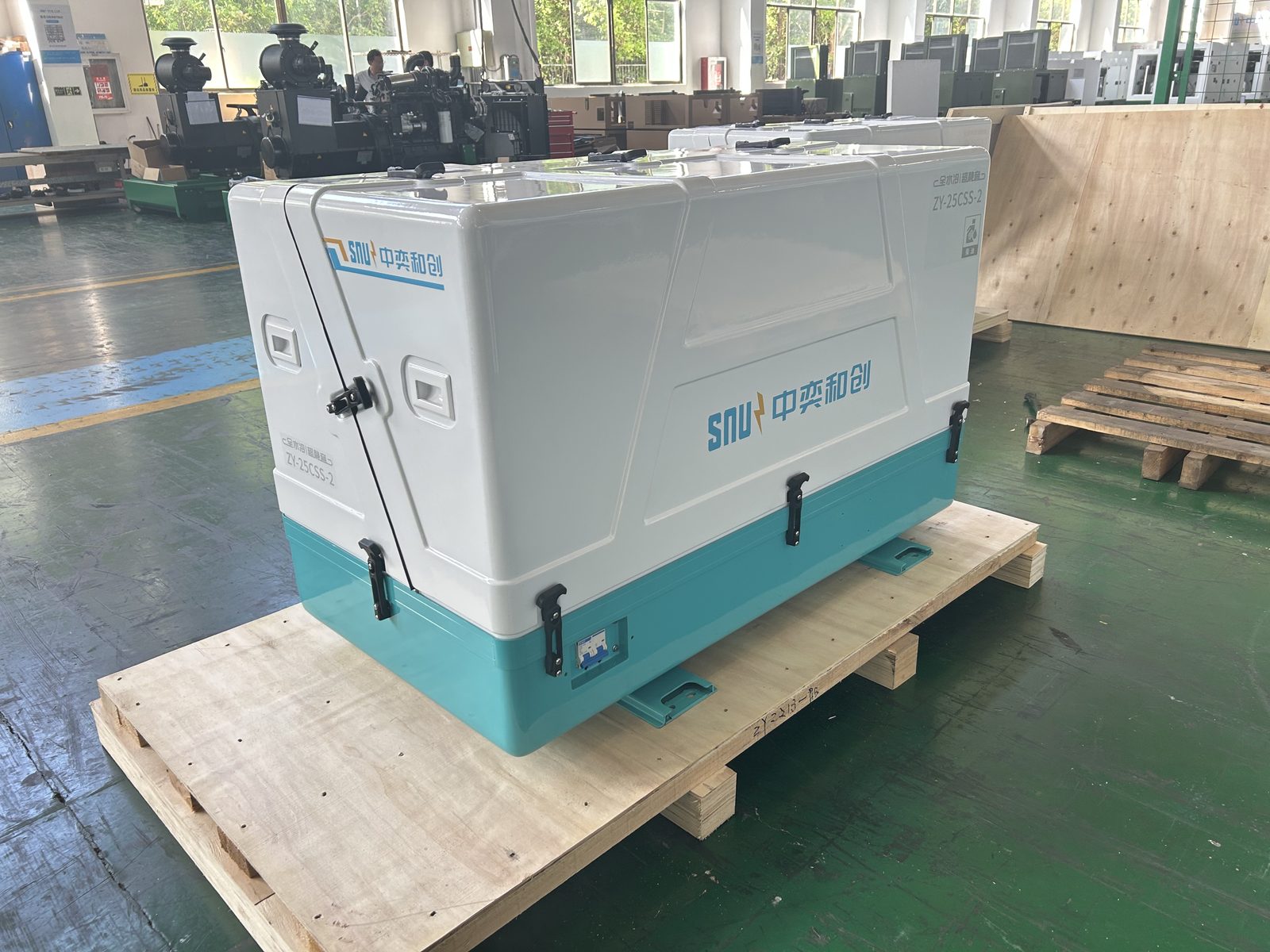

CSS ultra-silent generator - detail view — Detail

Technical Specifications

Product Parameters

Model-by-model data - subject to final factory confirmation

Power 8.8-25 kW | Full liquid-cooled single circuit | Inverter output | Disc-type liquid-cooled alternator

Model	Power (kW)	Voltage (V)	Main Unit Dimensions (mm)	Noise dB(A) @1m/3m/7m	Main Unit Weight (kg)	Radiator Dimensions (mm)	Radiator Weight (kg)
ZY-10UCSS-2	8.8	220	940x560x662	66/61/51	260	635x584x270	30
ZY-10UCSS-3	8.8	380	940x560x662	66/61/51	260	635x584x270	30
ZY-12UCSS-2	10.6	220	940x560x662	66/61/51	260	635x584x270	30
ZY-12UCSS-3	10.6	380	940x560x662	66/61/51	260	635x584x270	30
ZY-15UCSS-2	13	220	940x560x662	66/61/51	260	635x584x270	30
ZY-15UCSS-3	13	380	940x560x662	66/61/51	260	635x584x270	30
ZY-20UCSS-2	16.6	220	980x560x662	68/62/52	300	635x584x270	30
ZY-20UCSS-3	16.6	380	980x560x662	68/62/52	300	635x584x270	30
ZY-25UCSS-2	20.5	220	1165x660x760	70/64/54	470	708x700x322	40
ZY-25UCSS-3	20.5	380	1165x660x760	70/64/54	470	708x700x322	40
ZY-30UCSS-2	25	220	1165x660x760	70/64/54	470	708x700x322	40
ZY-30UCSS-3	25	380	1165x660x760	70/64/54	470	708x700x322	40

Power 8.8-25 kW | Full liquid-cooled single circuit | Liquid-cooled exciter alternator | Compact size

Model	Power (kW)	Voltage (V)	Main Unit Dimensions (mm)	Noise dB(A) @1m/3m/7m	Main Unit Weight (kg)	Radiator Dimensions (mm)	Radiator Weight (kg)
ZY-10CSS-2	8.8	220	1030x560x662	66/61/51	305	635x584x270	30
ZY-10CSS-3	8.8	380	1030x560x662	66/61/51	305	635x584x270	30
ZY-12CSS-2	10.6	220	1080x560x662	66/61/51	320	635x584x270	30
ZY-12CSS-3	10.6	380	1080x560x662	66/61/51	320	635x584x270	30
ZY-15CSS-2	13	220	1080x560x662	66/61/51	336	635x584x270	30
ZY-15CSS-3	13	380	1080x560x662	66/61/51	336	635x584x270	30
ZY-18CSS-2	15	220	1120x560x662	68/62/52	360	635x584x270	30
ZY-18CSS-3	15	380	1120x560x662	68/62/52	360	635x584x270	30
ZY-25CSS-2	20.5	220	1250x660x760	68/62/52	500	708x700x322	40
ZY-25CSS-3	20.5	380	1250x660x760	68/62/52	500	708x700x322	40
ZY-30CSS-2	25	220	1300x660x760	70/64/54	535	708x700x322	40
ZY-30CSS-3	25	380	1250x660x760	70/64/54	535	708x700x322	40

Power 6.8-32 kW | Liquid + air cooling | Semi-enclosed acoustic enclosure | Wide power range

Model	Power (kW)	Voltage (V)	Main Unit Dimensions (mm)	Noise dB(A) @1m/3m/7m	Main Unit Weight (kg)	Radiator Dimensions (mm)	Radiator Weight (kg)
ZY-8CSA-2	6.8	220	1010x660x700	67/61/51	350	562x540x260	25
ZY-8CSA-3	6.8	380	1010x660x700	67/61/51	350	562x540x260	25
ZY-10CSA-2	8.8	220	1010x660x700	67/61/51	350	562x540x260	25
ZY-10CSA-3	8.8	380	1010x660x700	67/61/51	350	562x540x260	25
ZY-12CSA-2	10.6	220	1050x660x700	67/61/51	360	562x540x260	25
ZY-12CSA-3	10.6	380	1050x660x700	67/61/51	360	562x540x260	25
ZY-15CSA-2	13	220	1050x660x700	67/61/51	360	562x540x260	25
ZY-15CSA-3	13	380	1050x660x700	67/61/51	360	562x540x260	25
ZY-20CSA-2	16.6	220	1260x770x835	68/62/52	510	635x584x270	30
ZY-20CSA-3	16.6	380	1260x770x835	68/62/52	510	635x584x270	30
ZY-25CSA-2	20.5	220	1260x770x835	68/62/52	520	635x584x270	30
ZY-25CSA-3	20.5	380	1260x770x835	68/62/52	520	635x584x270	30
ZY-30CSA-2	26.5	220	1370x770x835	70/64/54	560	700x622x305	35
ZY-30CSA-3	26.5	380	1370x770x835	70/64/54	560	700x622x305	35
ZY-40CSA-2	32	220	1400x770x835	70/64/54	585	700x622x305	35
ZY-40CSA-3	32	380	1370x770x835	70/64/54	575	700x622x305	35

Power 6.7-400 kW | Integrated structure | Low noise / low vibration / low IR signature | Smart dual control

Model	Power (kW)	Voltage (V)	Dimensions (mm)	Noise dB(A) @1m/3m/7m	Weight (kg)
ZY-8CEA-2	6.7	220	987x607x800	72/66/56	315
ZY-8CEA-3	6.7	380	987x607x800	72/66/56	315
ZY-10CEA-2	8.8	220	987x607x800	72/66/56	320
ZY-10CEA-3	8.8	380	987x607x800	72/66/56	320
ZY-12CEA-2	10.6	220	1037x607x800	72/66/56	350
ZY-12CEA-3	10.6	380	1037x607x800	72/66/56	350
ZY-15CEA-2	13	220	1150x607x800	74/68/58	360
ZY-15CEA-3	13	380	1150x607x800	74/68/58	360
ZY-20CEA-2	16.6	220	1490x770x900	74/68/58	630
ZY-20CEA-3	16.6	380	1490x770x900	74/68/58	630
ZY-25CEA-2	20.5	220	1490x770x900	74/68/58	640
ZY-25CEA-3	20.5	380	1490x770x900	74/68/58	640
ZY-30CEA-2	26.5	220	1600x770x900	74/68/58	670
ZY-30CEA-3	26.5	380	1600x770x900	74/68/58	670
ZY-40CEA-2	32	220	1750x820x900	74/68/58	700
ZY-40CEA-3	32	380	1750x820x900	74/68/58	700
ZY-50CEA-3	40	380	1850x820x900	78/72/62	770
ZY-70CEA-3	60	380	2250x1000x1050	78/72/62	1150
ZY-120CEA-3	100	380	2450x1100x1200	85/81/71	1500
ZY-260CEA-3	200	380	3000x1250x1600	86/82/72	2050
ZY-500CEA-3	400	380	4080x1500x2400	90/86/76	3600

Power 3.0-7.5 kW | Uses vehicle redundant space | No payload (superstructure) space occupied

Model	Power (kW)	Voltage (V)	Current (A)	No-load Fluctuation (%)	Full-load Fluctuation (%)	Generator Weight (kg)	Control Unit Dimensions (mm)	Control Unit Weight (kg)
KLK-3KF-2	3.0	220	12	0.09	0.06	10	490x438x132	31
KLK-3.5KF-2	3.5	220	15	0.09	0.06	15	482.6x550x177	38
KLK-4KF-2	4.0	220	18	0.09	0.06	15	482.6x550x177	38
KLK-5KF-2	5.0	220	23	0.09	0.06	15	482.6x550x177	38
KLK-6KF-2	6.0	220	27	0.09	0.06	15	482.6x550x177	38
KLK-7.5KF-2	7.5	220	34	0.09	0.06	15	520x440x220	58

Standalone Product Line

Detachable Generator Supply Station

Packages a VISION POWER generator (CSS/UCSS or CSA recommended) inside Fengqi's detachable shelter shell - a fully integrated mobile power station. The shelter features hydraulic lift, auto-levelling and multi-box interchange, coordinating with Fengqi's other shelters (office / accommodation / workshop / medical / refrigeration).

StandardPro (smart monitoring / remote)Flagship (high protection / high altitude)Trailer (rapid tow-out)

Target scenes: Mines, infrastructure sites, emergency relief, off-grid sites, telecom base stations.

Get Custom Quote

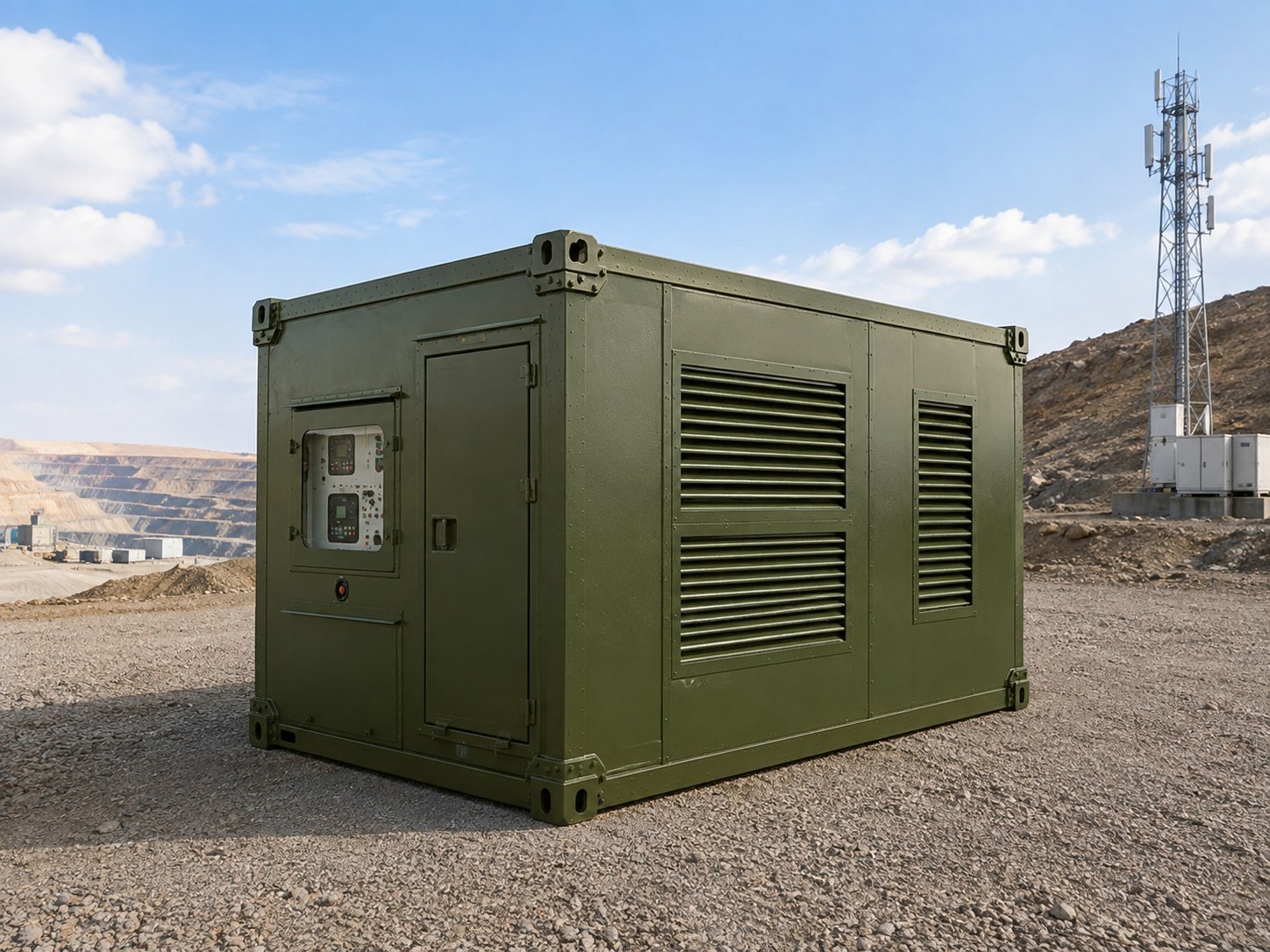

Detachable shelter-type silent power station at a remote mining and telecom worksite

Brand & Certification

Export Ready

VISION POWER is a silent power generation brand. Fengqi supplies these systems together with export documentation, per-shipment certificates and local-market compliance support.

Compliance documentation is provided per model and per shipment. Project-specific certification is handled according to the destination market's requirements.

Global Delivery

Power Where It Is Needed

Real overseas delivery and on-site deployment of VISION POWER generator sets - from container loading and base-station installation to mining-camp commissioning and emergency-response deployment.

20+ countries

Markets Served

Africa

Central Asia - Middle East

Fast

Track Delivery

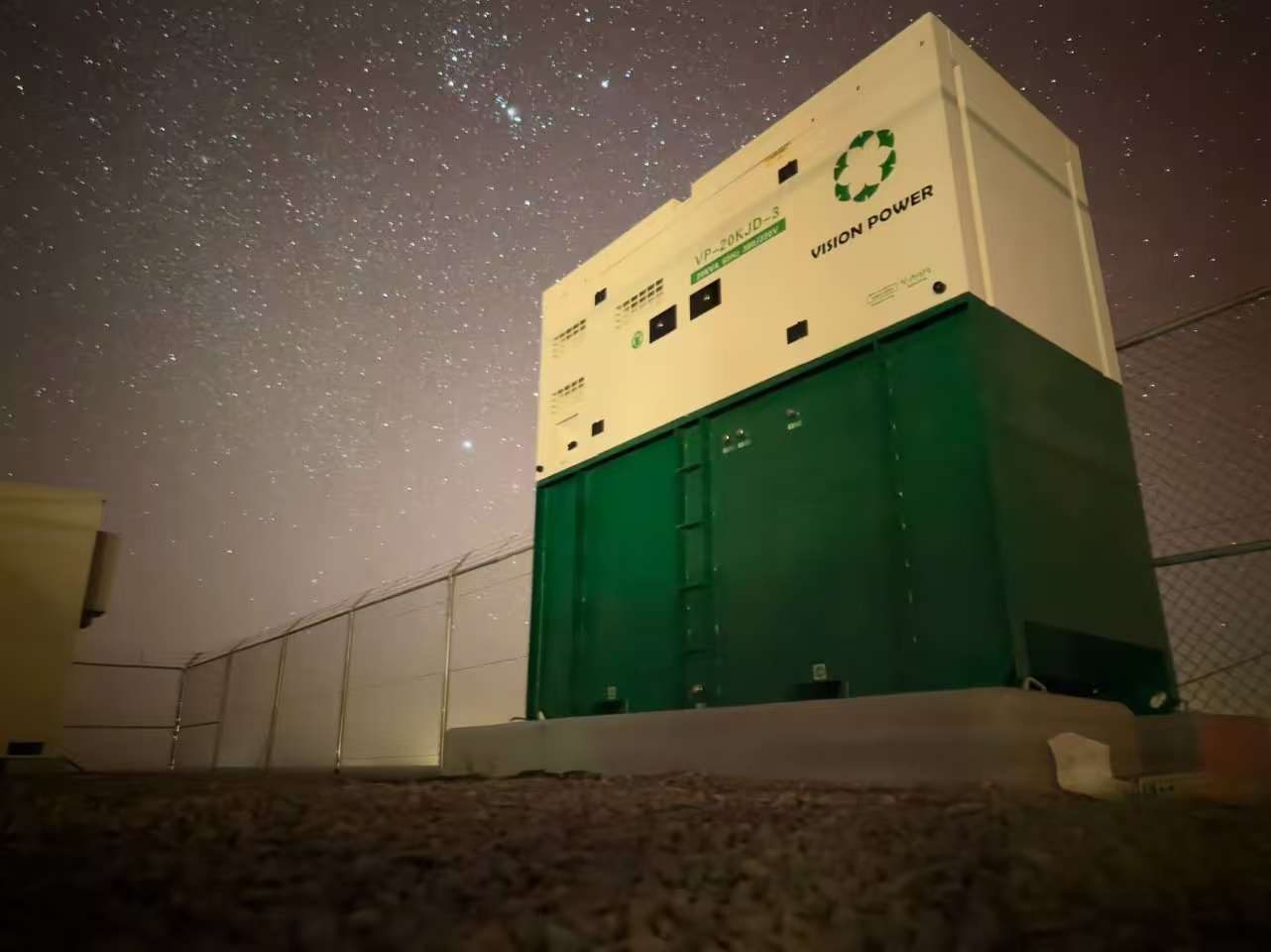

Container loading for overseas delivery — Export Packing

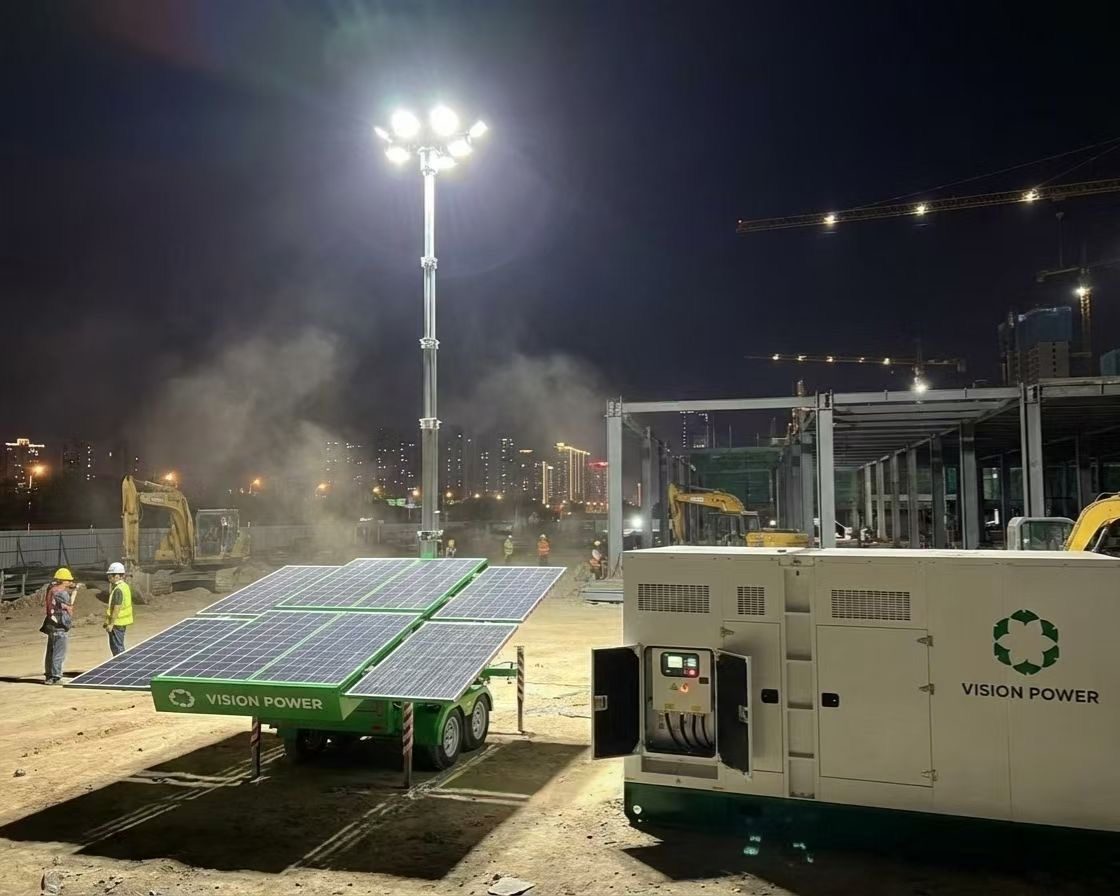

Overseas delivery scene — Container Shipping

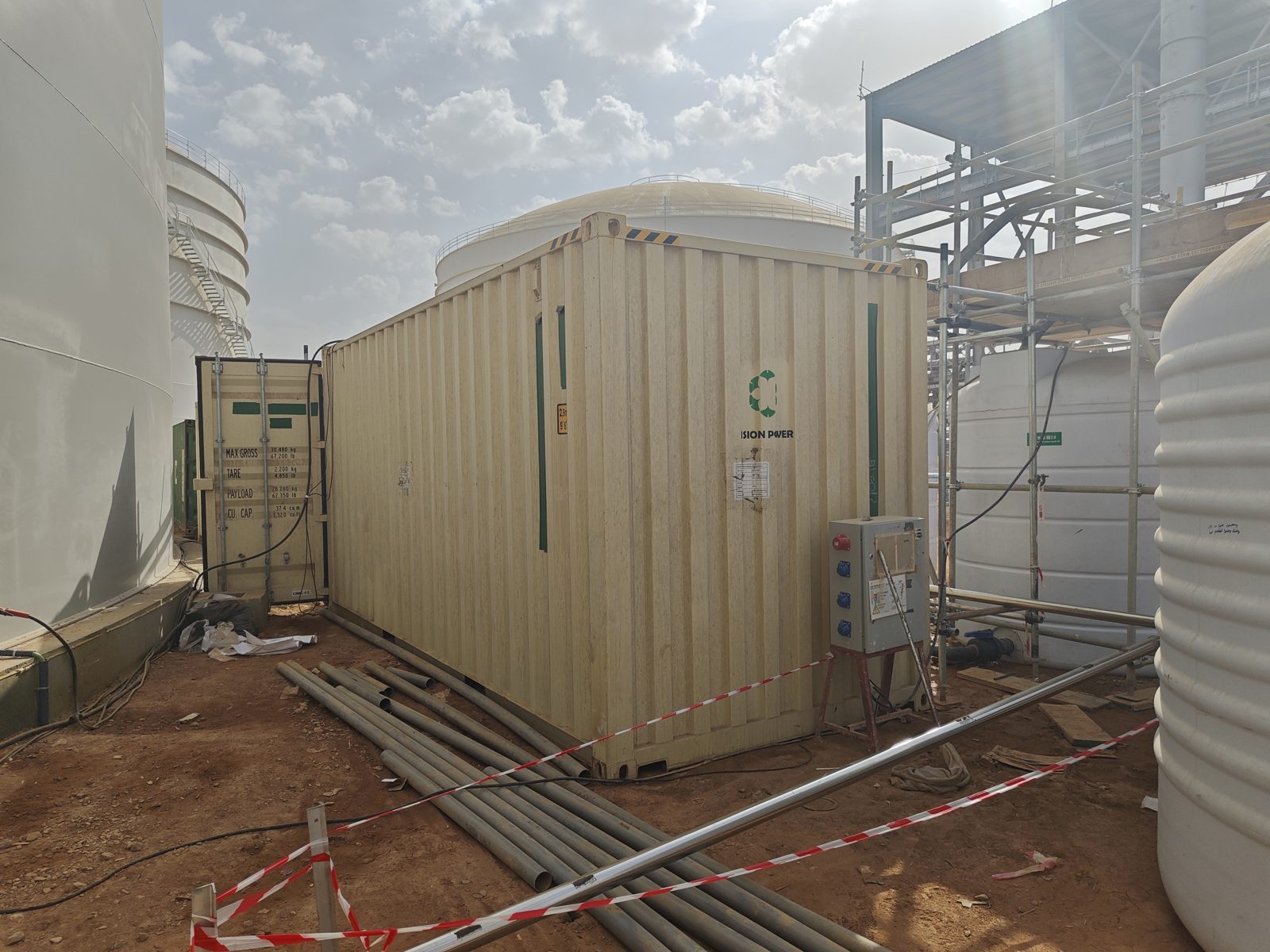

Generator set on site — Field Deployment

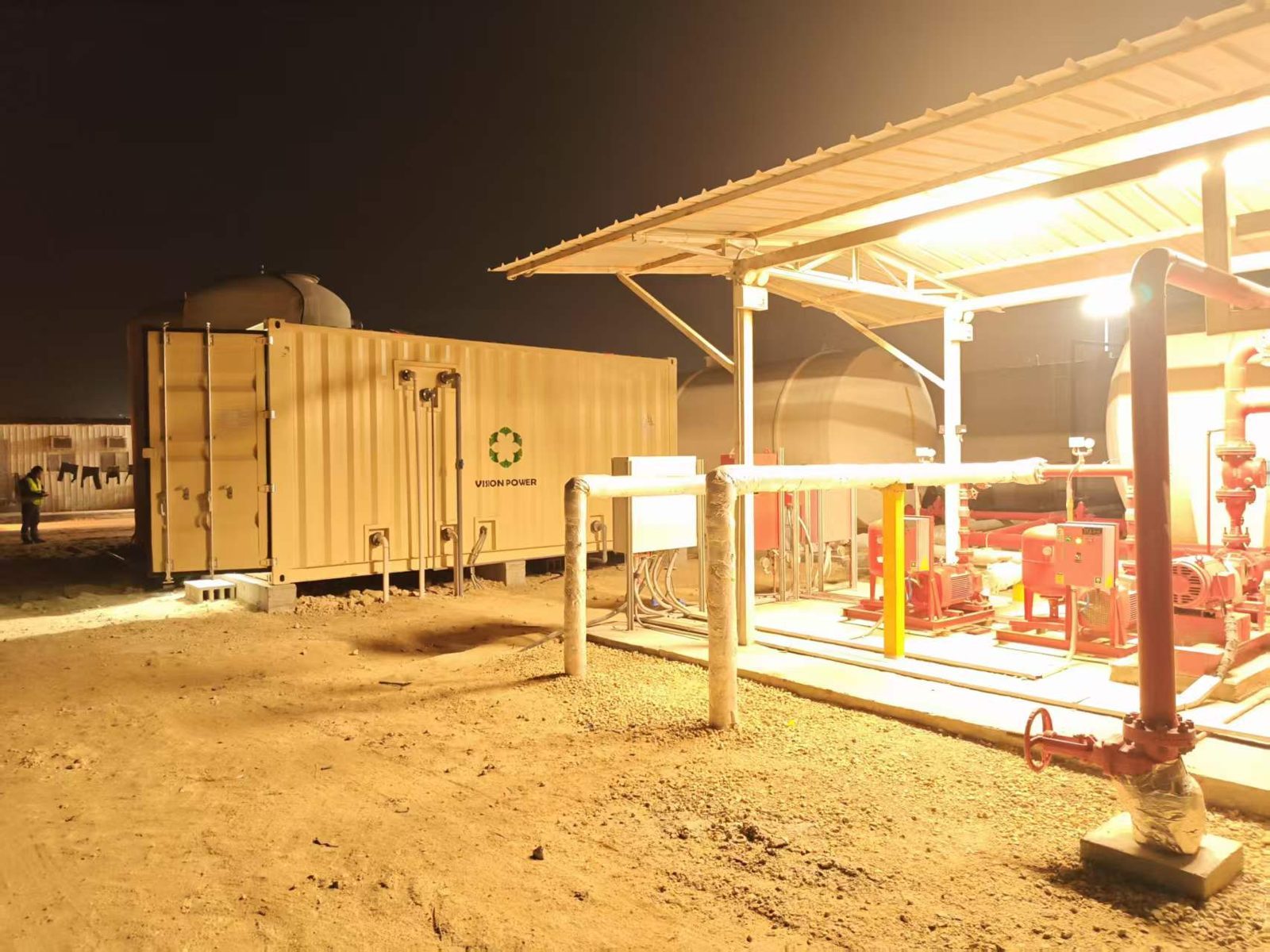

Generator set installed — On-Site Install

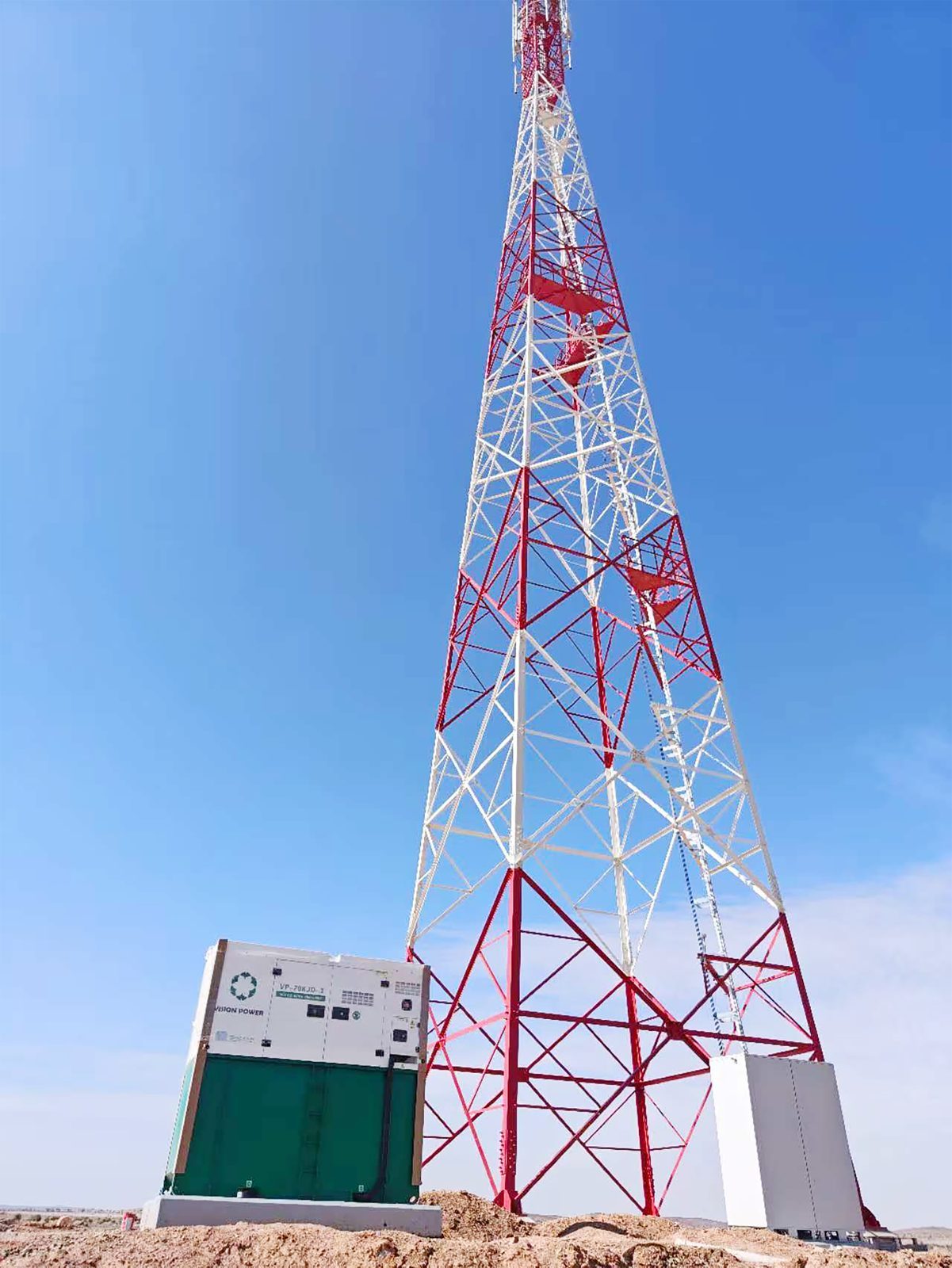

Generator at work overseas — Operating Site

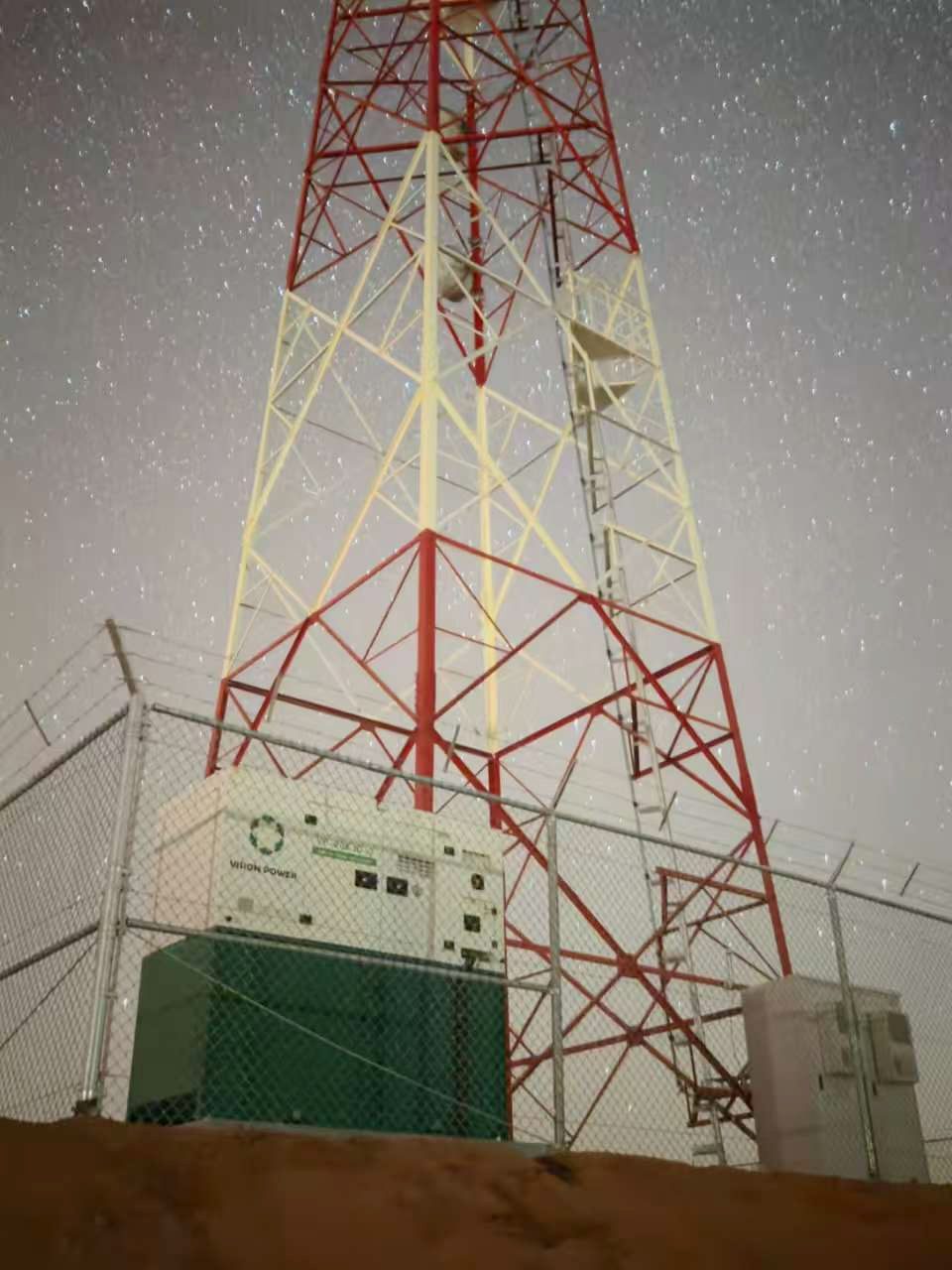

Generator set deployment — Commissioning

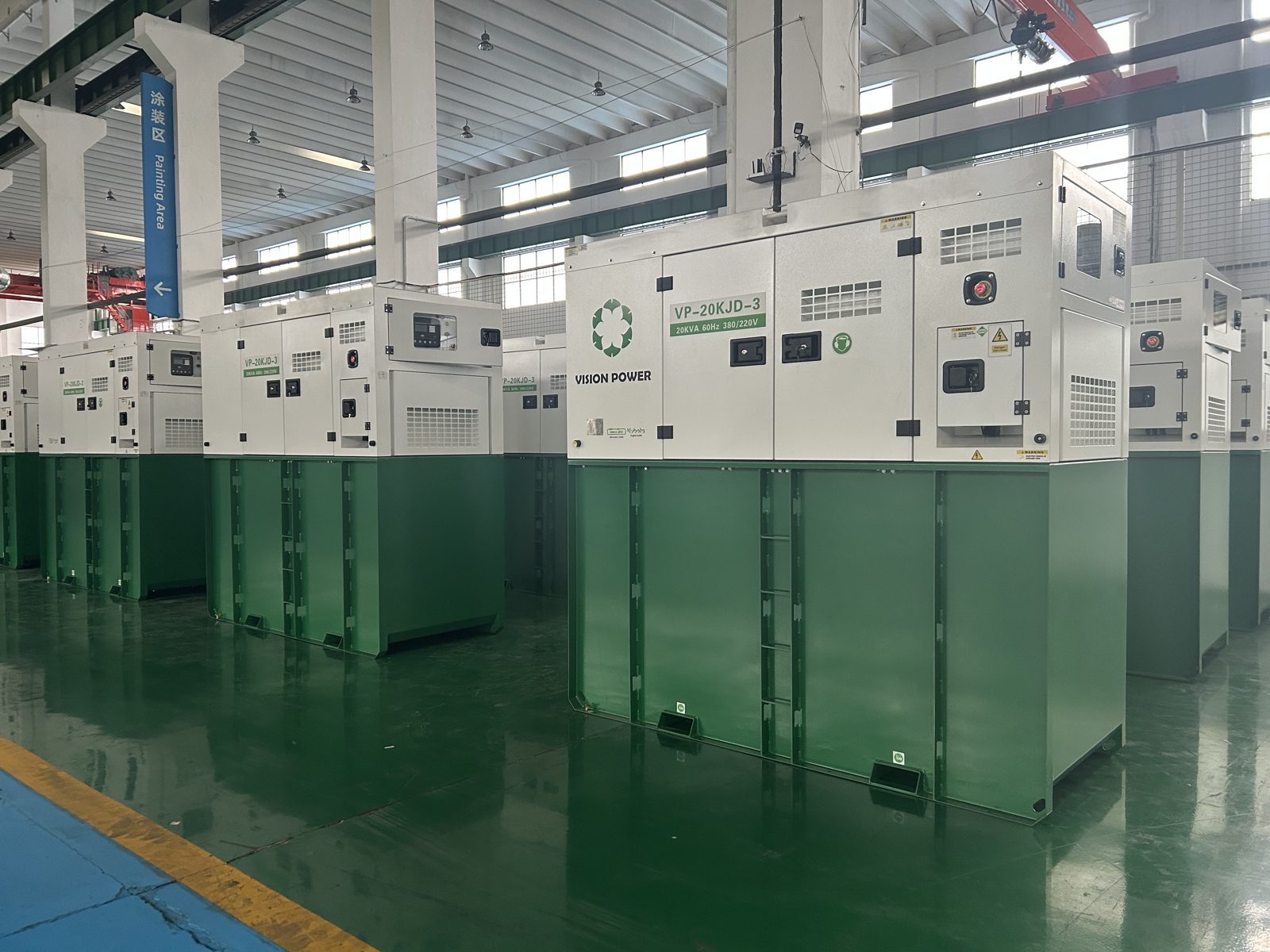

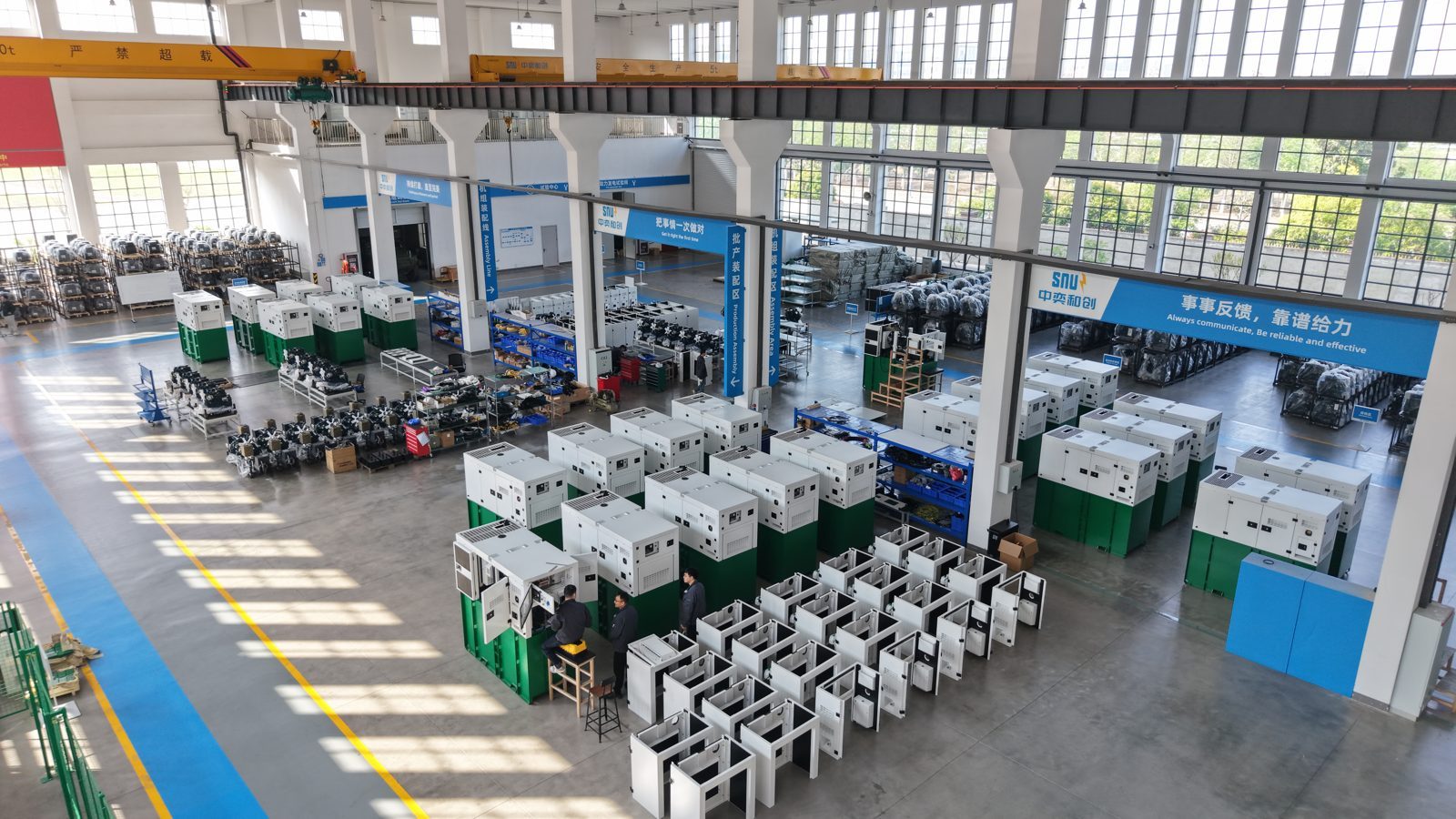

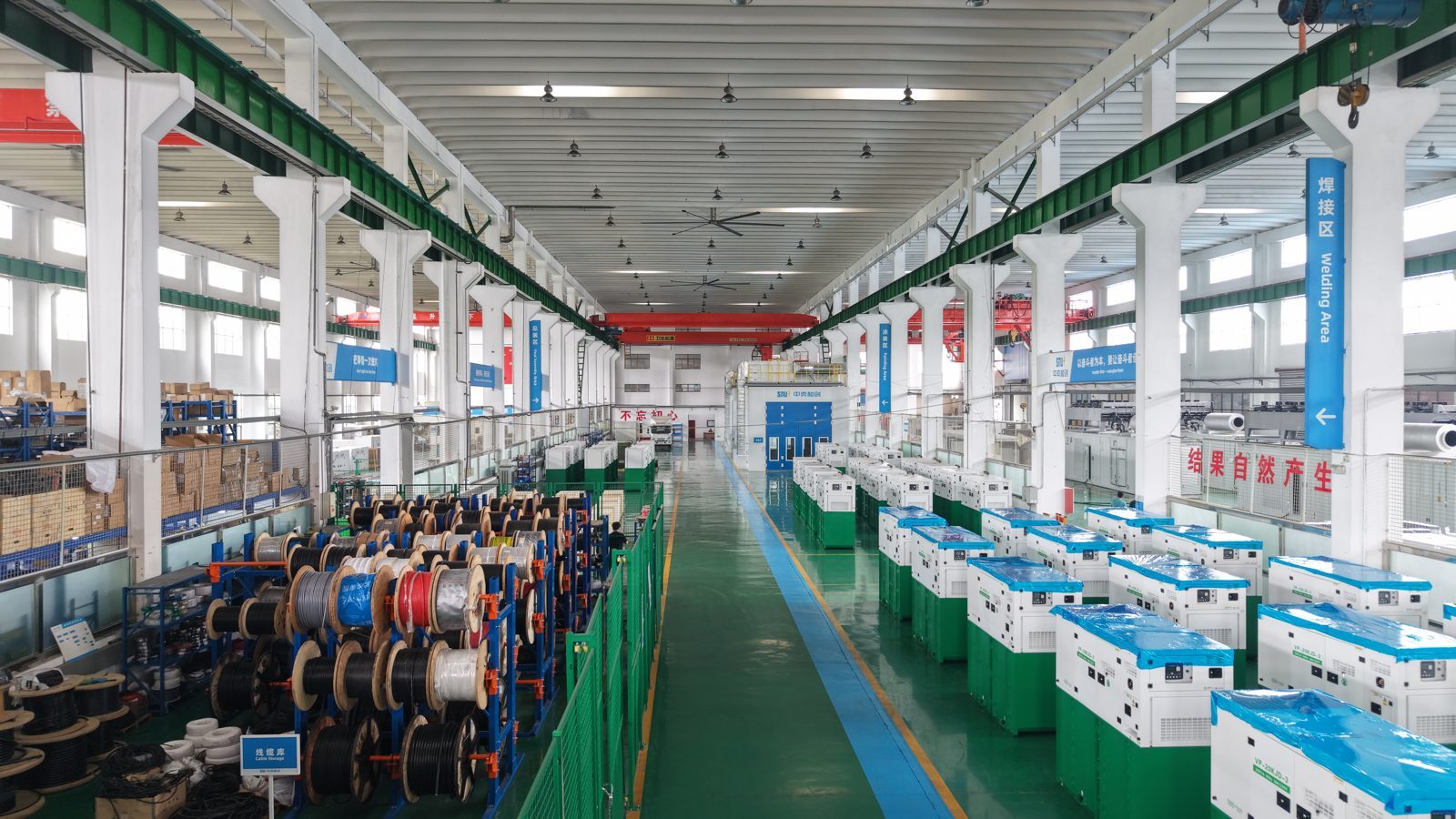

Manufacturing

Supplied via the VISION POWER manufacturing base - shelter integration and export packing handled by Fengqi.

Request A Quotation

Tell us your power requirement (kW), application scenario and target market. We respond within 2 business days with model recommendation and FOB price.
