Energy & Municipal Vehicles

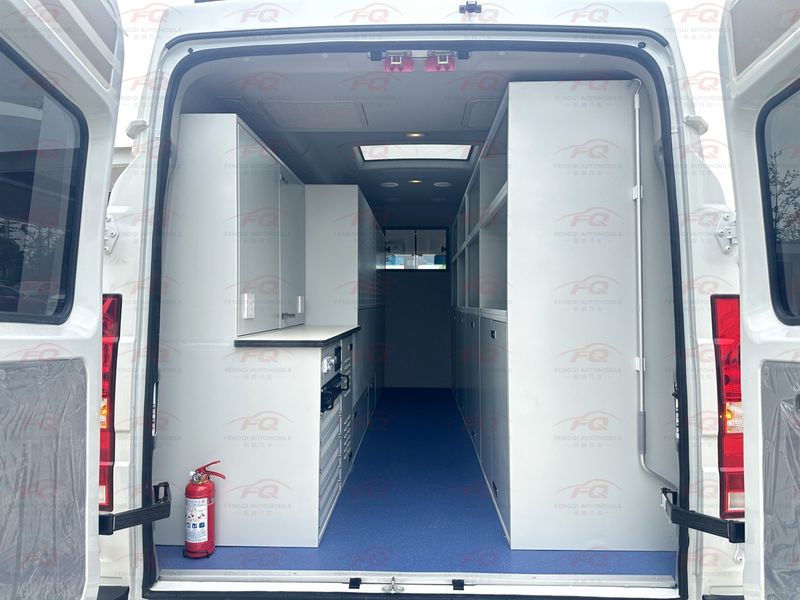

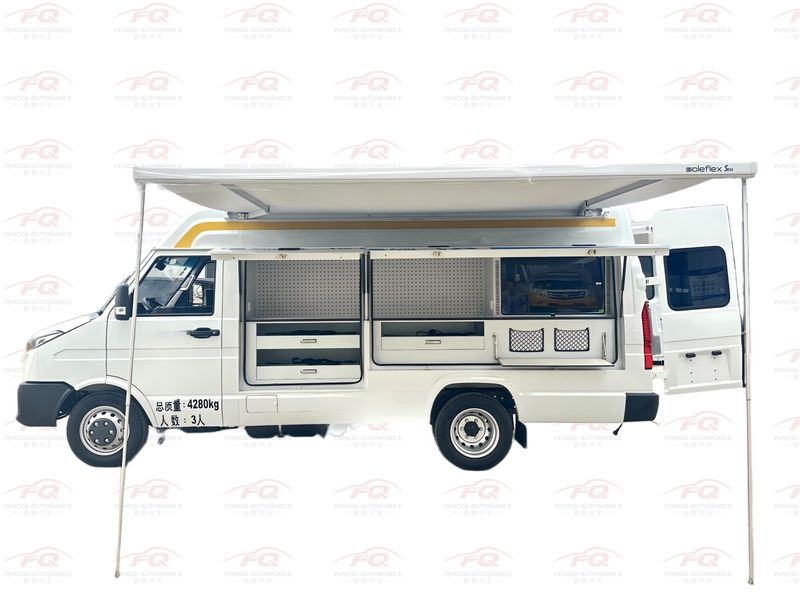

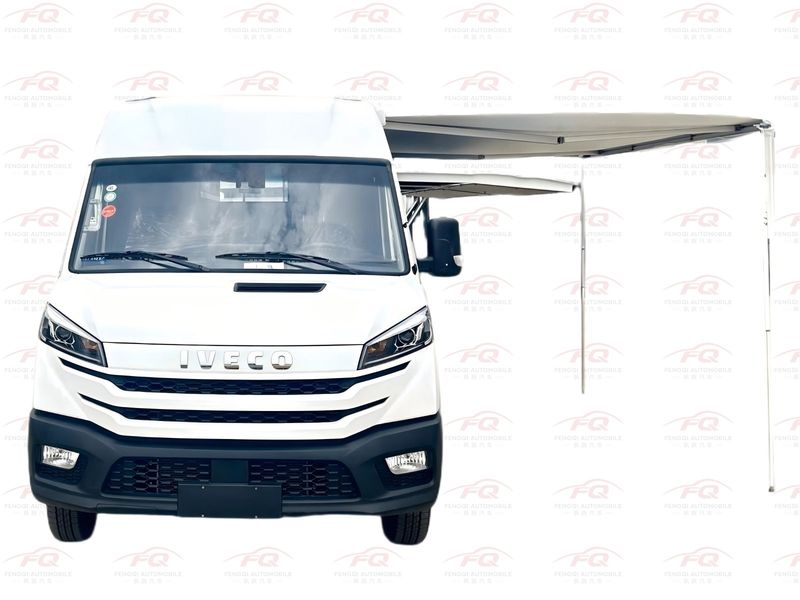

IVECO Daily A39 Gas Utility Service Vehicle

4.3t Pipeline Inspection & Emergency Repair Truck

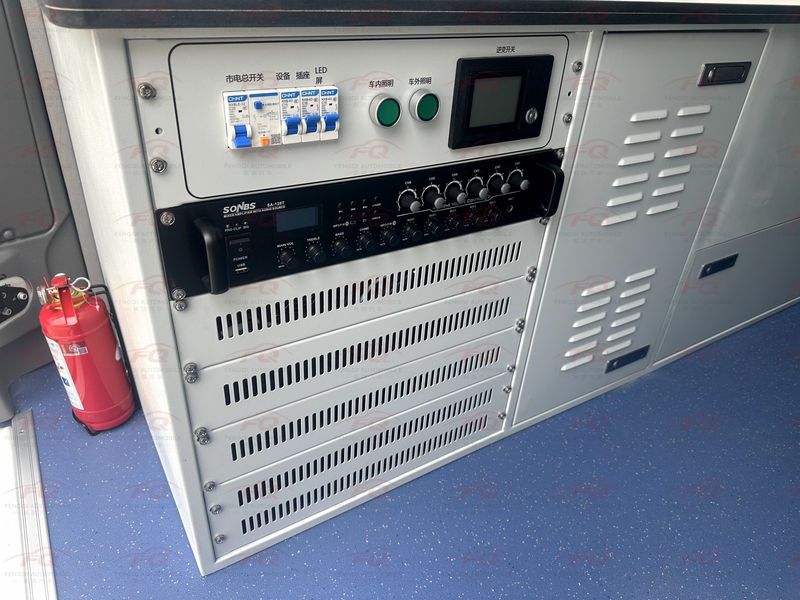

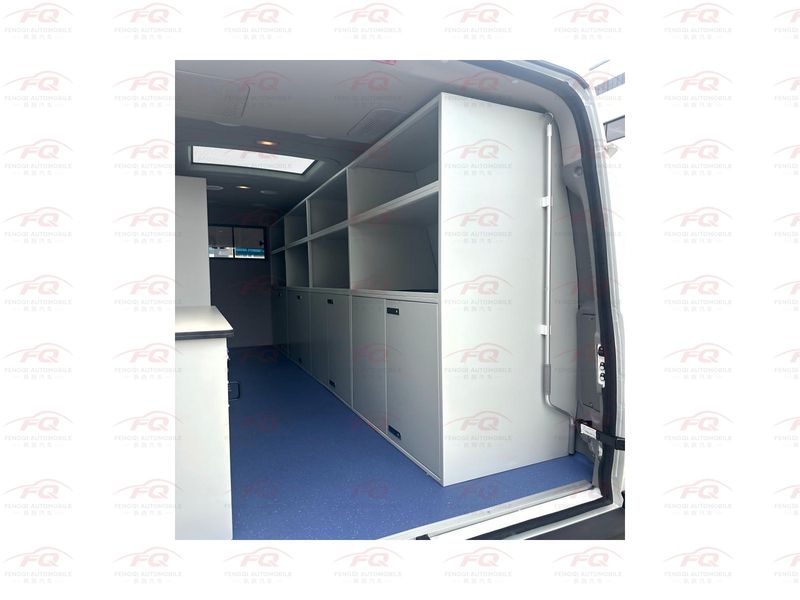

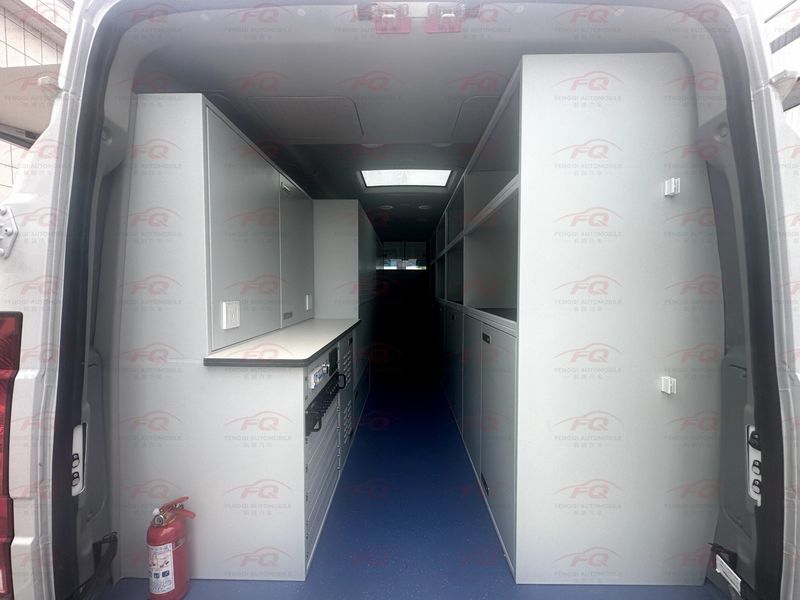

This IVECO Daily A39 gas utility service vehicle has body dimensions of 5490 x 2000 x 2540 mm, 3310 mm wheelbase, approximately 4280 kg GVW, curb weight 2750/2950 kg, top speed 140 km/h, 6.50R16LT tires, axle loads 1620/2660 kg, and approach/departure angles 20/15 degrees. For power, China V models are equipped with the F1C 3.0T diesel engine (F1CE34818, 107 kW/145 PS) and up; China VI models offer optional F1A 2.0T (107/109 kW) or F1C 3.0T (125/132 kW) diesel engines. The upper-body system configuration at the solution level includes explosion-proof lighting with forced ventilation, mobile repair workbench with tool cabinet, gas detection equipment, gas cylinder and spare parts racks, industrial control dispatch terminal with GIS, inverter power supply with UPS, roof-mounted air conditioning, and patterned aluminum plate interior cabin, suitable for inspection, emergency repair, and response services for urban gas pipeline networks.

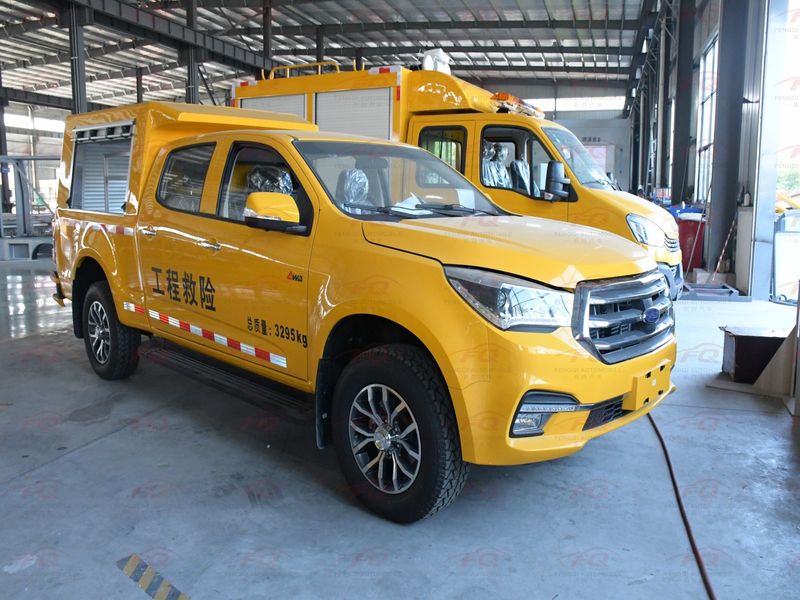

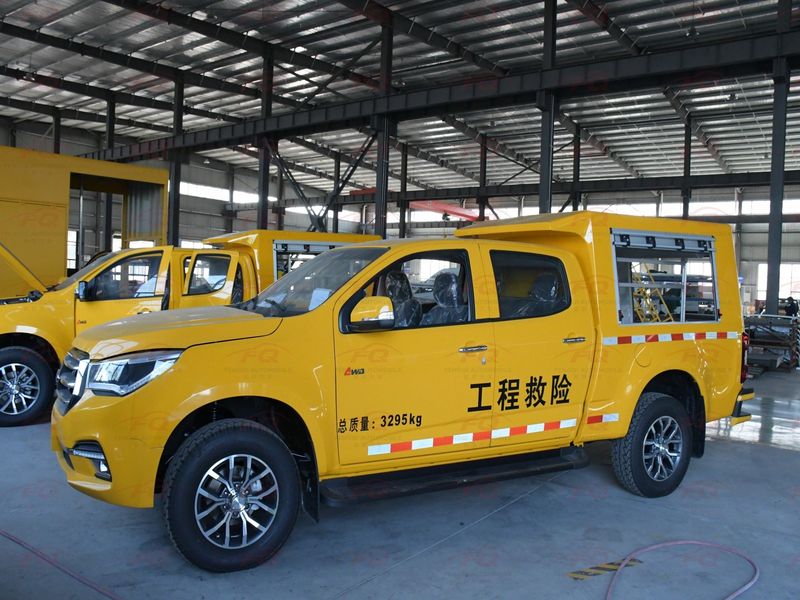

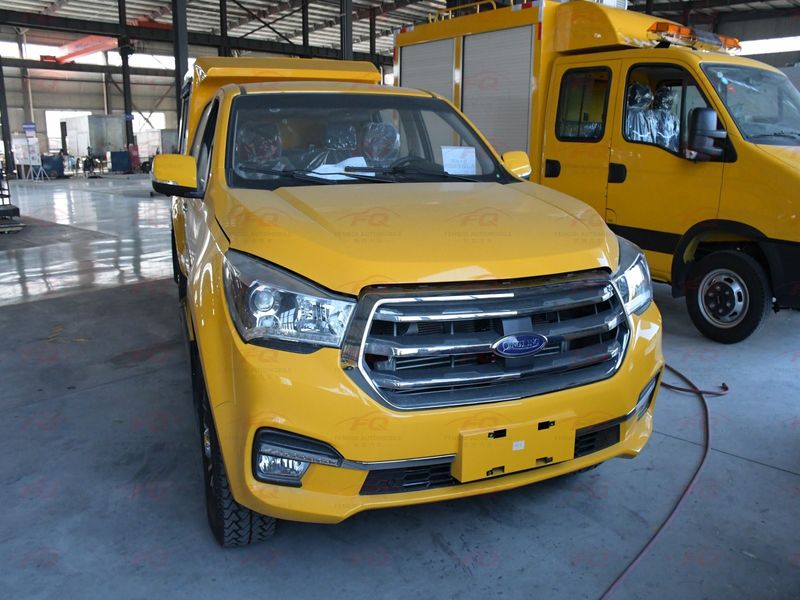

Qingling Isuzu 4x4 Pickup Emergency Rescue Vehicle

3.3t Lightweight Drainage & Breaching Truck

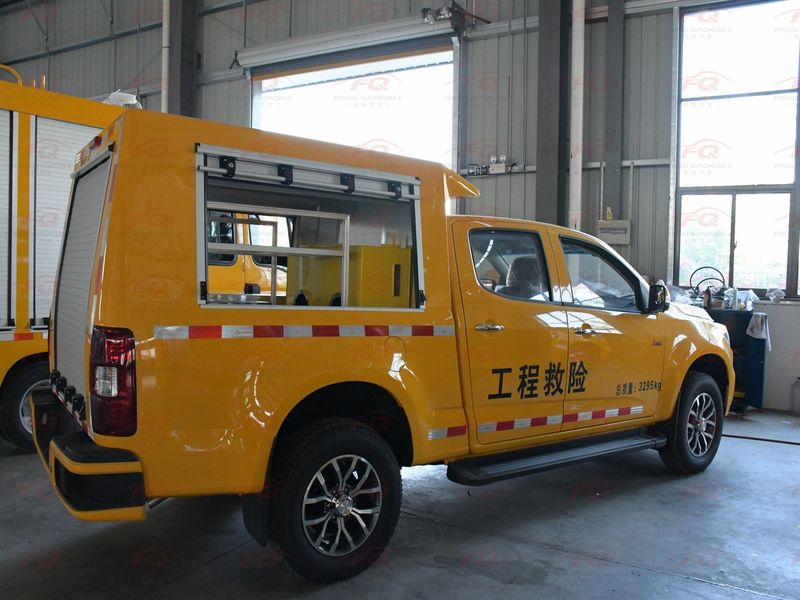

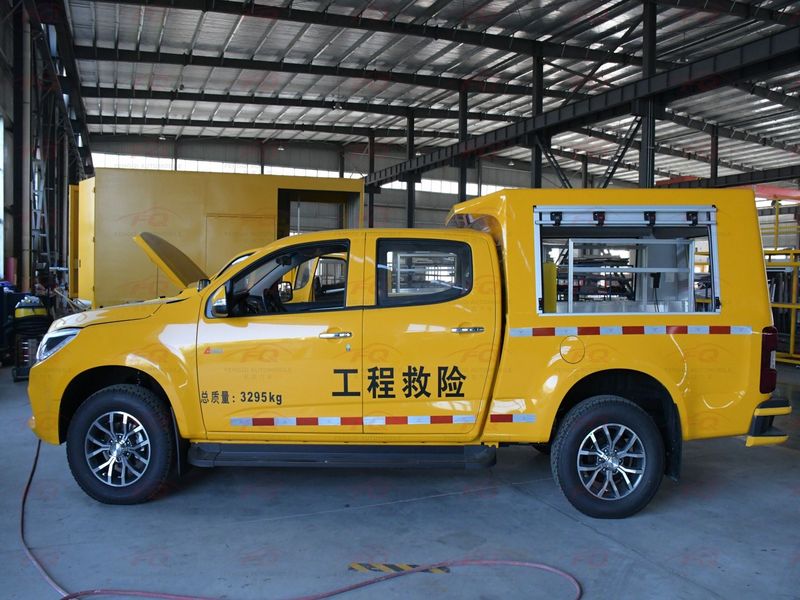

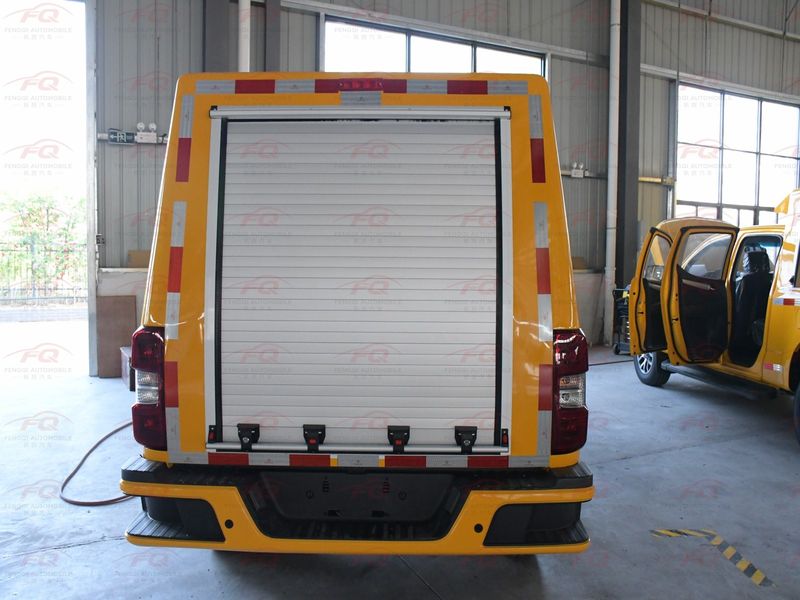

This Qingling Isuzu pickup emergency rescue vehicle is based on the Qingling Isuzu QL1030CZHW2 four-wheel-drive pickup, with 4x4 drive, body dimensions of 5660/5692/5700 x 1877/1885/1955 x 2000/2150 mm (top lighting option raises height to 2150 mm), 3406 mm wheelbase, 3295 kg GVW, curb weight 2970 kg (with generator set) or 2245 kg (without generator set), cab seating for 2+3, axle loads 1350/1945 kg, 245/70R17LT 10PR tires, and approach/departure angles of 33/26 degrees. Power comes from an Isuzu 4KH1CT6H1 3.0T diesel engine (2999 ml displacement, 105 kW/143 PS, 103 kW net output, China VI emission standard), with ABS by Chongqing Qingling QLJJABS-Y-03. Dedicated equipment includes generator set, power cabinet, and drainage equipment (emergency rescue drainage), with onboard generator, cable reel, chainsaw, breaching, cutting, and welding tools; the roof can be optionally fitted with search light or elevating work light, with optional louver and side door, and engineering yellow livery, suitable for pipeline and municipal emergency rescue, emergency drainage, and field rescue operations.

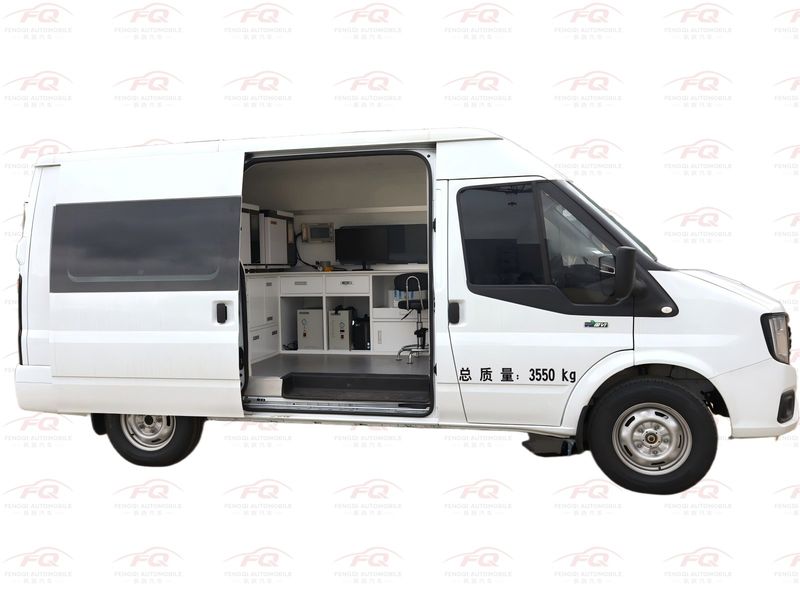

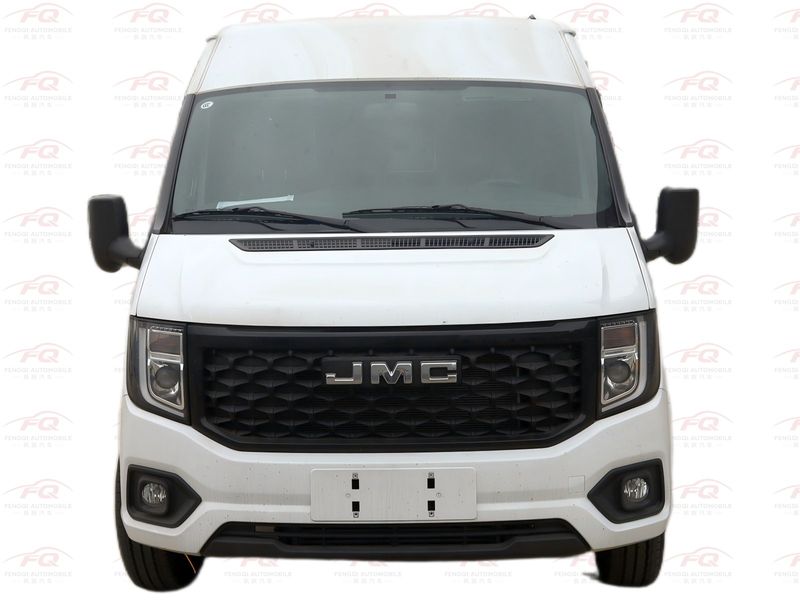

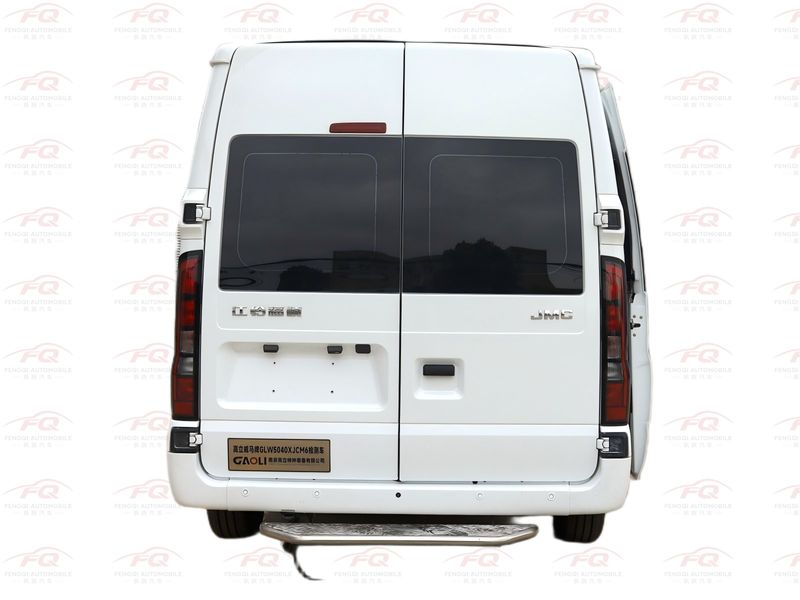

JMC Fushun Coal Mine Gas Detection Vehicle

3.55t Mobile Chromatography Gas Analyzer Truck with Explosion-Proof Sampling

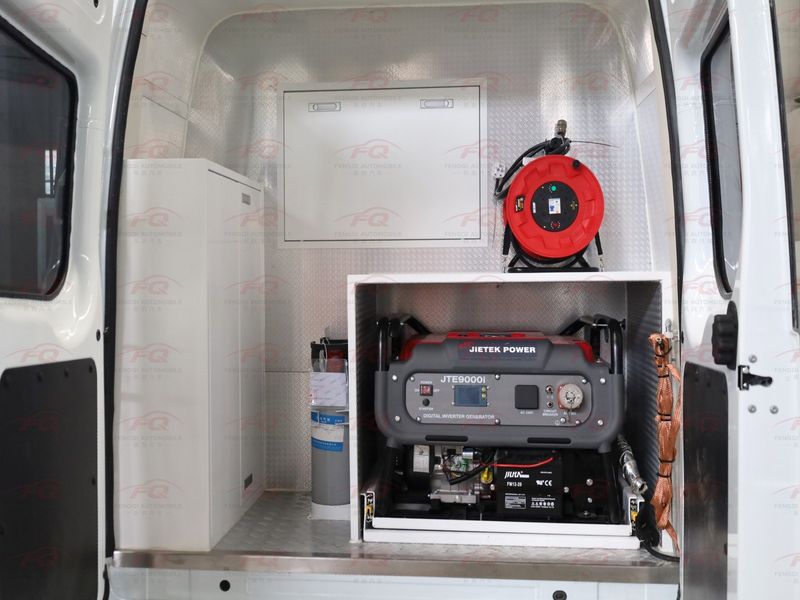

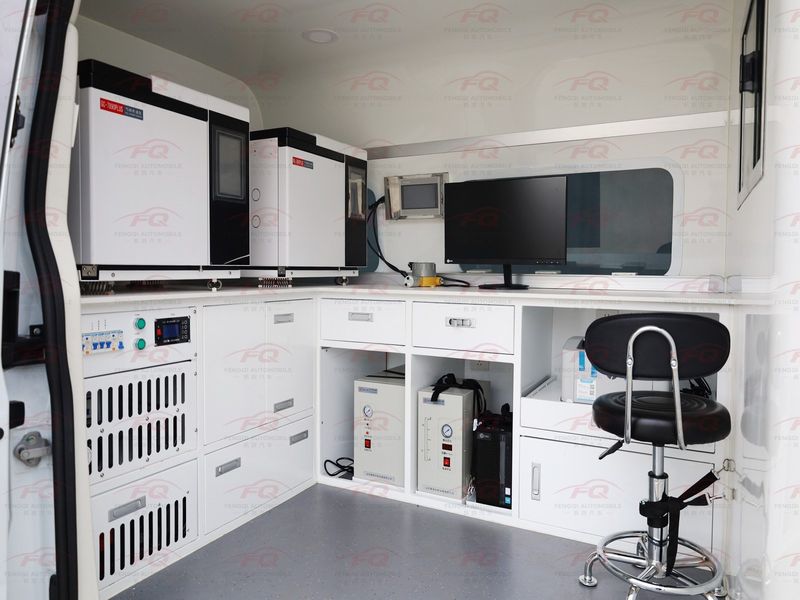

This JMC Fushun coal mine gas detection vehicle has body dimensions of 5655/5495 x 1974 x 2700/2645 mm (two length options, two height options), 3550 kg GVW, 3355 kg curb weight, seating for 3, 3360 mm wheelbase, four 215/75R16LT/C tires, and top speed of 160 km/h (ECU speed limiter optional at 100 or 69 km/h). Power comes from a JMC JX4D20A6H 2.0T diesel engine (1998 ml displacement, 107 kW/143 PS, China VI emission standard GB 17691-2018), with standard Asia-Pacific 3550B500 ABS or optional Bosch ESP9, EDR, and optional direct-power ETC. Dedicated equipment includes gas chromatograph, instrument cabinet, workbench, and generator, with vehicle purpose of mobile detection operation. The interior layout covers upper-cabinet dual gas chromatographs A/B (main analysis equipment), white integrated polyurethane workbench with 3-layer drawer cabinet and power/gas source cabinet, 24-inch LCD industrial control all-in-one with black pneumatic swivel operator chair, stainless steel carrier/standard gas pipelines with pressure gauges and forced ventilation. The coal mine gas detection dedicated configuration includes 6 major modules: main analysis adopts dual-channel gas chromatography (FID detects CH4, C2H6, C2H4, C2H2, C3H8; TCD detects H2, O2, N2, CO, CO2, with detection limits from ppm to ppb level); auxiliary analysis is equipped with 8-12 channel electrochemical, infrared, and laser sensors (CH4, CO, CO2, O2, H2S, SO2, NO, NO2, NH3, C2H4) and TDLAS laser methane remote sensing at 30-100 m; environment and airflow monitoring covers temperature, humidity, barometric pressure, wind speed, wind direction, and dust (PM2.5, PM10, respirable dust); sample collection is equipped with electric or manual sampling pump, dust sampler, filter membrane, adsorption tube, and gas sampling bag; explosion-proof intrinsic safety configuration is Exib IIBT4 (compliant with GB 3836) plus explosion-proof sampling probe 1-3 m (compliant with GB/T 20953); data communication supports GPS/Beidou, 4G/5G, optional satellite communication, and connects to the Ministry of Emergency Management coal mine safety risk monitoring and early warning system (compliant with MT/T 1004, AQ 6201, classified protection 2.0 level 3). Typical detection limits per MT/T 1078 and AQ 6201: CH4 <= 1.0% warning, 1.5% power-off and evacuation; CO <= 24 ppm (8h); H2S <= 6.6 ppm (8h); O2 >= 20%, <= 18% evacuation; dust <= 4 mg/m3 (total), 2.5 mg/m3 (respirable).

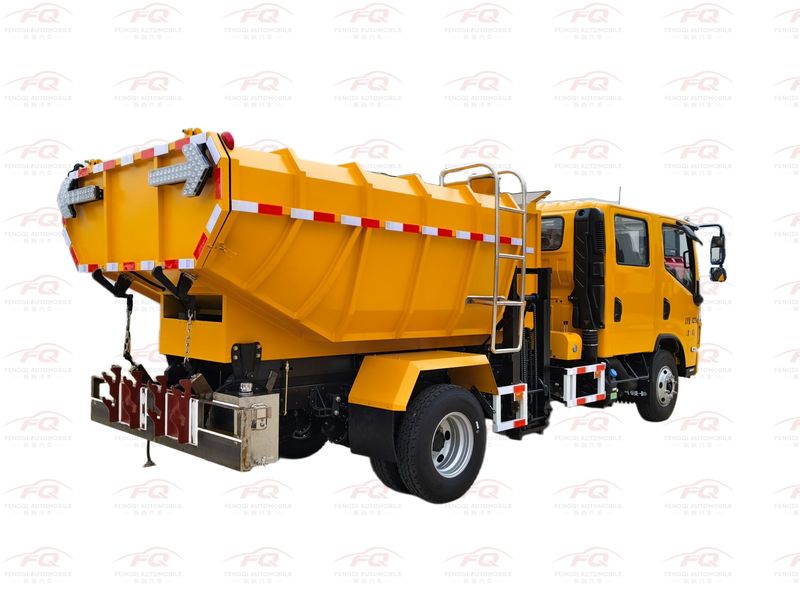

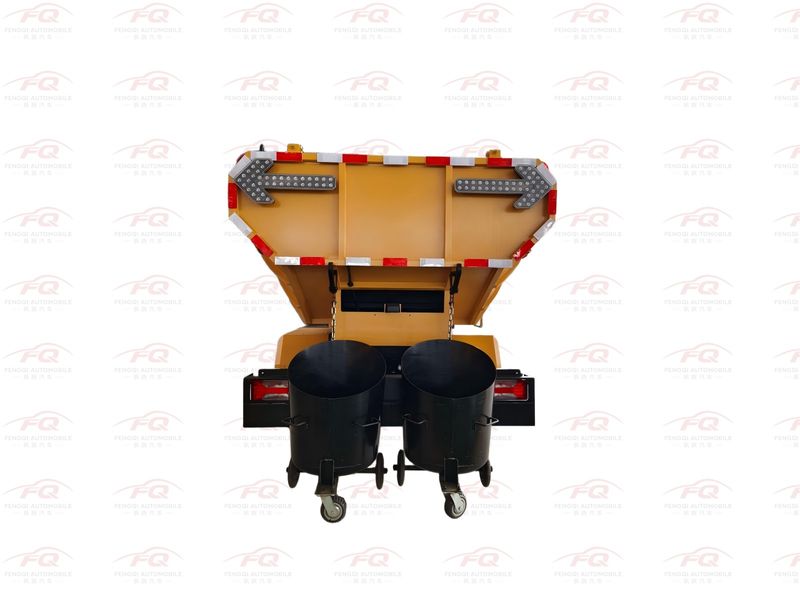

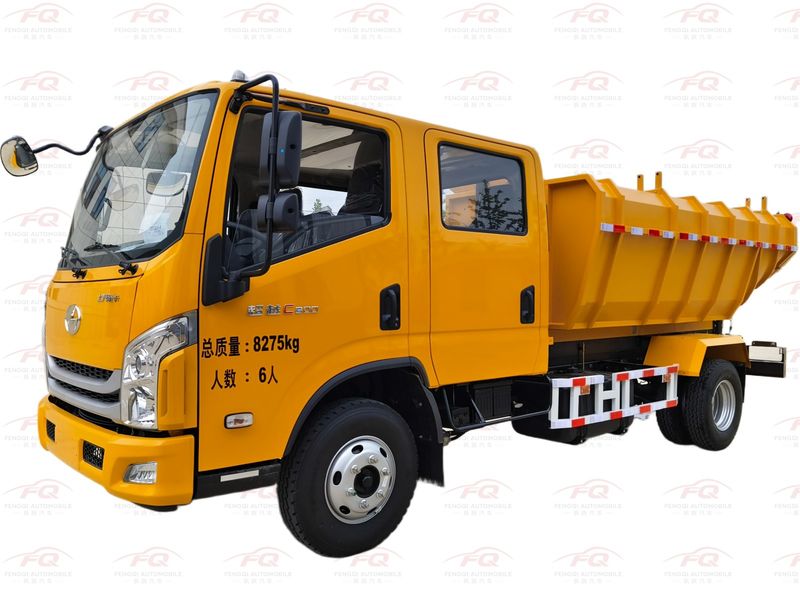

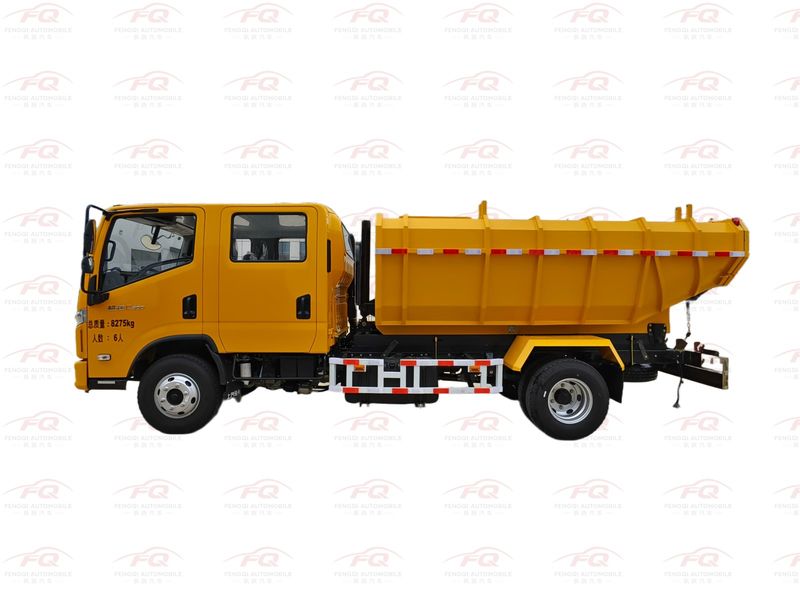

Yuejin Dredging Vehicle

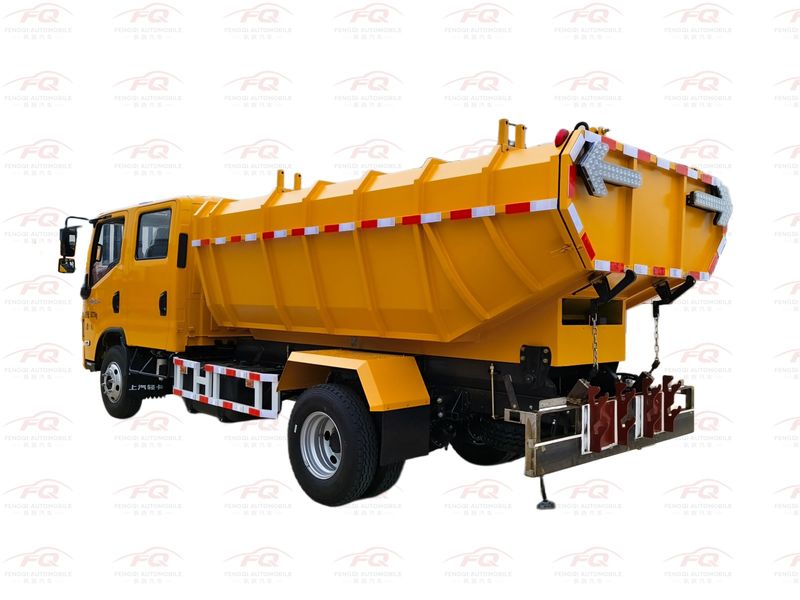

# Yuejin Double-Cab Sludge Truck - Product Introduction (Bilingual Version) Designed for municipal sanitation, sewage treatment plants, and industrial sludge transport, built on the Yuejin C300/C500 chassis. Compliant and efficient, suitable for urban operation scenarios at home and abroad. ## Key Highlights - Double-cab, 6-seat crew cabin: can carry both operators and equipment at the same time, meeting the attendance needs of municipal crews - China VI / Euro VI emissions: compliant with domestic and major overseas market environmental regulations, strong export adaptability - Lightweight sludge hopper: made of high-strength carbon steel / stainless steel, corrosion-resistant and easy to clean, with smooth discharge - Flexible maneuverability: overall length <= 6 m, suitable for narrow streets, plant areas, and residential compounds - Proven chassis: Yuejin light-duty truck chassis, easy maintenance, high parts commonality, reducing operation and maintenance costs ## Basic Parameters (Sample version, adjustable to actual vehicle) | Item | Parameter | English Label | |------|------|----------| | Brand | Yuejin | Yuejin | | Model | Double-Cab Sludge Transport Truck | Double Cab Sludge Transport Truck | | GVW | 8275 kg | Gross Vehicle Weight (GVW): 8275 kg | | Curb Weight | ~4200 kg | Curb Weight: ~4200 kg | | Rated Payload | ~3800 kg | Rated Payload: ~3800 kg | | Overall Dimensions | 5995 x 2200 x 2550 mm | Overall Dimensions: 5995 x 2200 x 2550 mm (LxWxH) | | Wheelbase | 3308 mm | Wheelbase: 3308 mm | | Cab | Double cab, 6 seats | Double Cab, 6 Seats | | Emission Standard | China VI (Euro VI equivalent) | Emission Standard: China VI (Euro VI equivalent) | | Fuel Type | Diesel | Fuel Type: Diesel | | Engine | Yunnei D30TCIF1 | Engine Model: Yunnei D30TCIF1 | | Displacement | 2.977 L | Displacement: 2.977 L | | Max. Power | 125 kW (170 HP) | Max. Power: 125 kW (170 HP) | | Transmission | 5/6-speed manual | Transmission: 5/6-speed Manual | | Drive Type | 4x2 | Drive Type: 4x2 | ## Upper Body (Sludge Hopper) Key Parameters | Item | Parameter | English Label | |------|------|----------| | Effective Volume | 4-6 m3 | Effective Volume: 4-6 m3 | | Material | Carbon steel / stainless steel (optional) | Material: Carbon Steel / Stainless Steel (Optional) | | Body Thickness | 4-5 mm | Thickness: 4-5 mm | | Discharge Mode | Rear tipping / side tipping (optional) | Discharge Mode: Rear Tipping / Side Tipping (Optional) | | Lifting System | Hydraulic cylinder | Lifting System: Hydraulic Cylinder | | Anti-corrosion | Internal anti-corrosion coating / stainless steel lining | Anti-corrosion: Internal Anti-corrosion Coating / Stainless Steel Lining | ## Safety and Comfort Configurations - Braking system: air brakes + ABS, stable and reliable braking - Steering system: hydraulic power assistance, light and easy handling - Cab: air conditioning, power windows, central locking, reversing camera (optional) - Protective devices: side and rear guards, compliant with regulations - Reflective markings: high-visibility reflective strips, improving nighttime operation safety ## Application Scenarios - Municipal sewage treatment plants: sludge, sediment, and digestate transport - Industrial enterprises: chemical, dyeing, and food industry sludge / waste transport - River dredging: short-distance transport of dredged sediment from rivers and lakes - Sanitation operations: cleaning and transport of septic tanks in residential compounds and plant areas ## English Brief (for LinkedIn / product brochure) > Yuejin Double Cab Sludge Transport Truck > Built on the reliable Yuejin C-series chassis, this sludge truck is designed for efficient municipal and industrial sludge transportation. With a 6-seat double cab, it can accommodate a full work team while carrying up to 6m3 of sludge. Compliant with China VI (Euro VI) emission standards, it features a corrosion-resistant sludge container and hydraulic tipping system for easy discharge. Ideal for sewage treatment plants, industrial waste management, and river dredging projects, it offers excellent maneuverability in urban and industrial environments. ### Tips for Export Documentation - For overseas markets, emphasize: Euro VI emissions, 6-person work crew, 4-6 m3 volume, hydraulic tipping - Customizable per customer needs: stainless steel tank, side tipping discharge, different volumes, etc.
